Model:BT630
Turning Diameter (Max.):∅630mm
Swing Over Cross Slide:∅370mm
Swing In Gap Diameter:∅830mm
Max. Length Of Workpiece:1000/1500/2000/3000/4000mm
Max. Turned Length:650/1150/1650/2650/3650mm
Center Height:315mm
Width Of Bed:560mm
Spindle Nose:D11
Spindle Bore:∅105mm
Taper Of Spindle Bore:∅120 (1:20)
Spindle Speed (18 Steps):7.5~1000rpm
Top Slide Travel:200mm
Cross Slide Travel:440mm
Max. Section Of Tools:25x25mm
Range Of Metric Threads (50 Kinds):1~240mm
Range Of Inch Threads (26 Kinds):14~1 T.P.I
Threads Diametral Pitches (24 Kinds):28~1 D.P
Threads Module Pitches (53 Kinds):0.5~120M.P
Tailstock Quill Diameter:∅100mm
Tailstock Quill Travel:230mm
Taper Of Tailstock Quill:MT6
Motor Power:11kw
Coolant Pump Power:100w
Voltage:380V~440V(3PH)
Packing Size:(3725/4225/5225/6275)x1600x1800mm

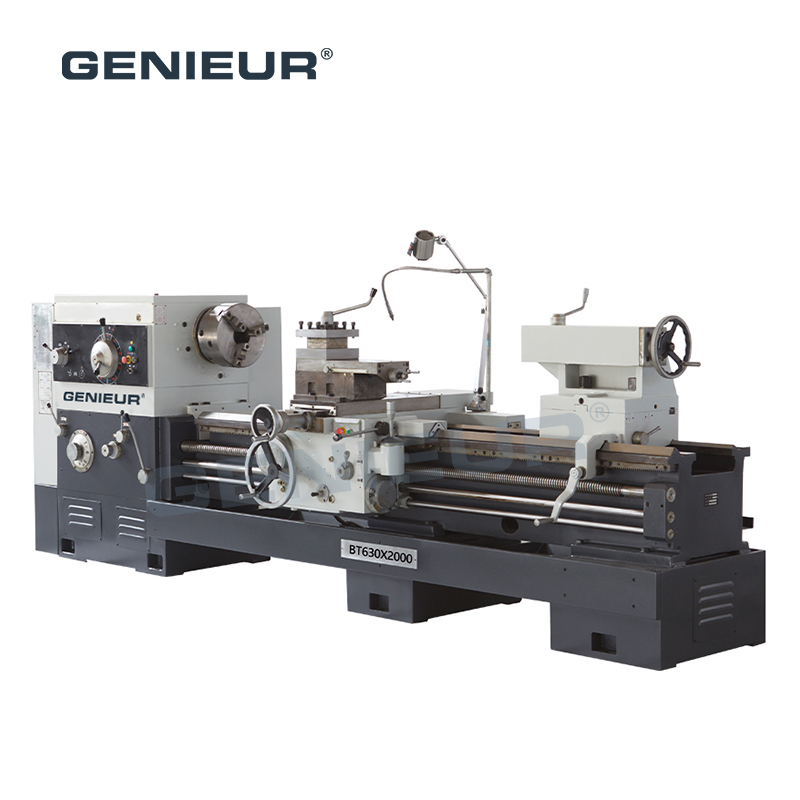

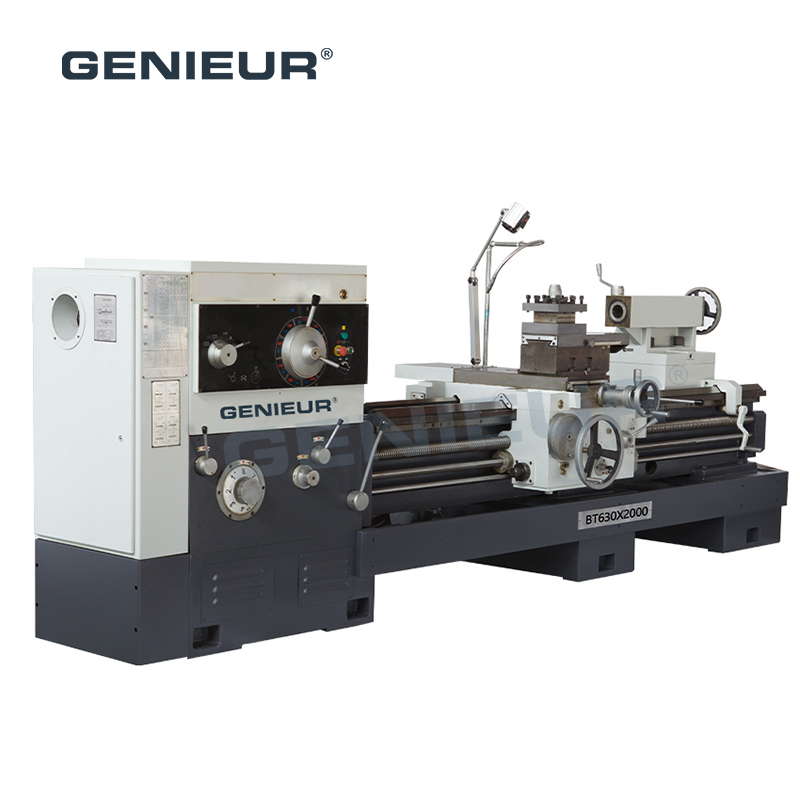

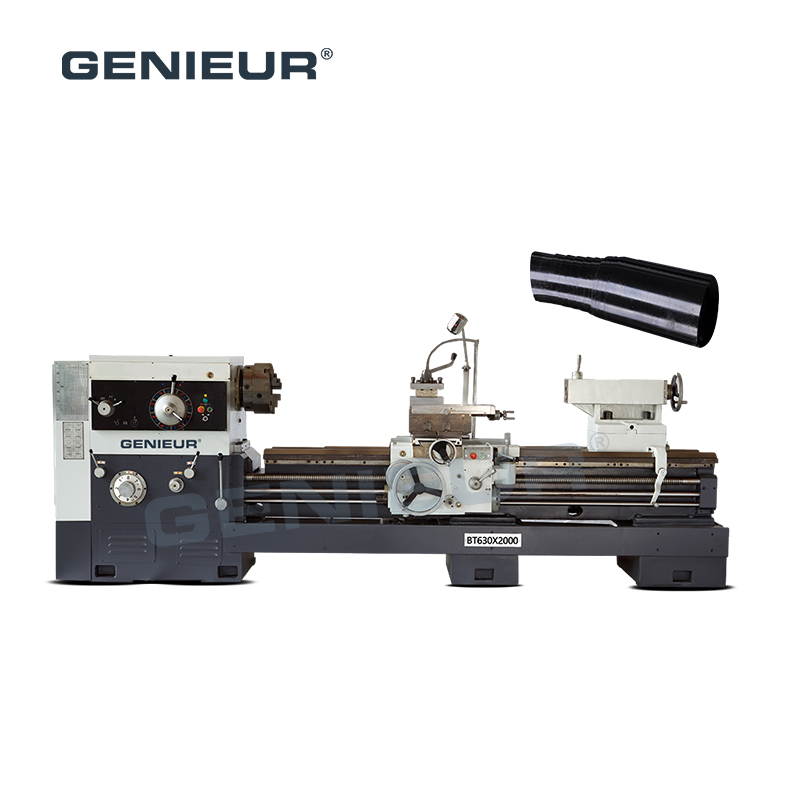

1000mm/1500mm/2000mm/3000mm/4000mm rapid feed 105mm spindle bore lathe for shaft parts (BT630) is a game-changer for precision shaft machining. With 5 optional center distances, it adapts seamlessly to short pins, long drive shafts, and heavy-duty rotor shafts, while 105mm spindle bore accommodates thick workpieces without extra pre-processing, slashing production cycles.

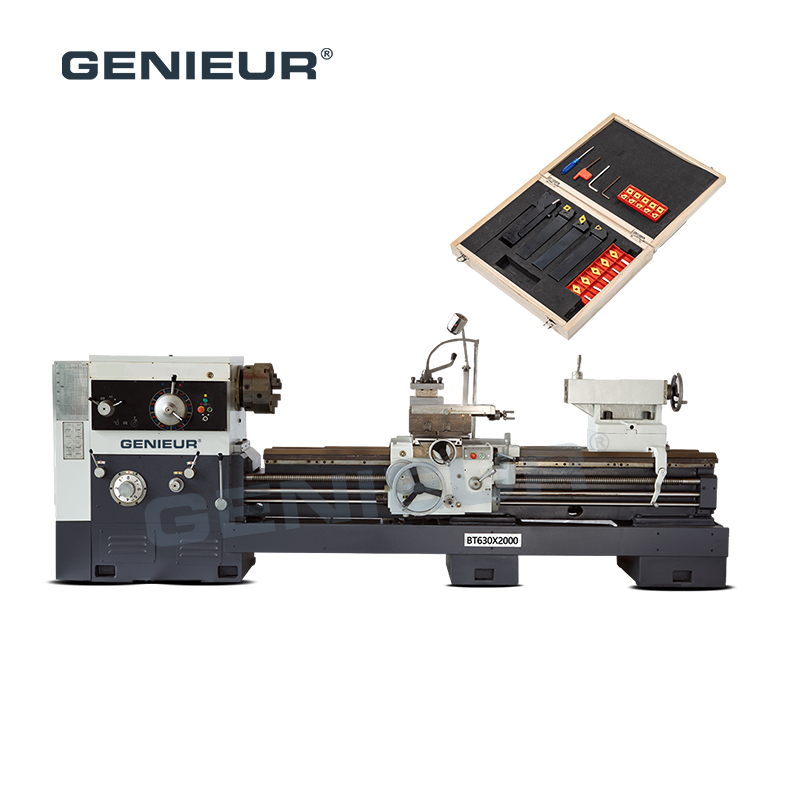

Boasting 11kW high-torque motor, this BT630 lathe delivers higher efficiency than conventional models. Equipped with a 4-jaw chuck and MT6 tailstock, it handles heavy workpieces stably, supporting multi-process machining of cylindrical, conical, and threaded shafts.
Ideal for automotive, machinery, and aerospace sectors, 1000mm/1500mm/2000mm/3000mm/4000mm rapid feed 105mm spindle bore lathe for shaft parts merges versatility and durability. Choose BT630 to elevate your shaft processing efficiency—1000mm/1500mm/ 2000mm/ 3000mm/4000mm rapid feed 105mm spindle bore lathe for shaft parts is your reliable production partner.
