Model:Z5032
Max. Drilling Capacity:32mm
Spindle Taper:MT4
Spindle Stroke:160mm
Spindle Center To Column Surface:300mm
Spindle Nose To Worktable:Max. 720mm
Spindle Nose To Base:1200mm

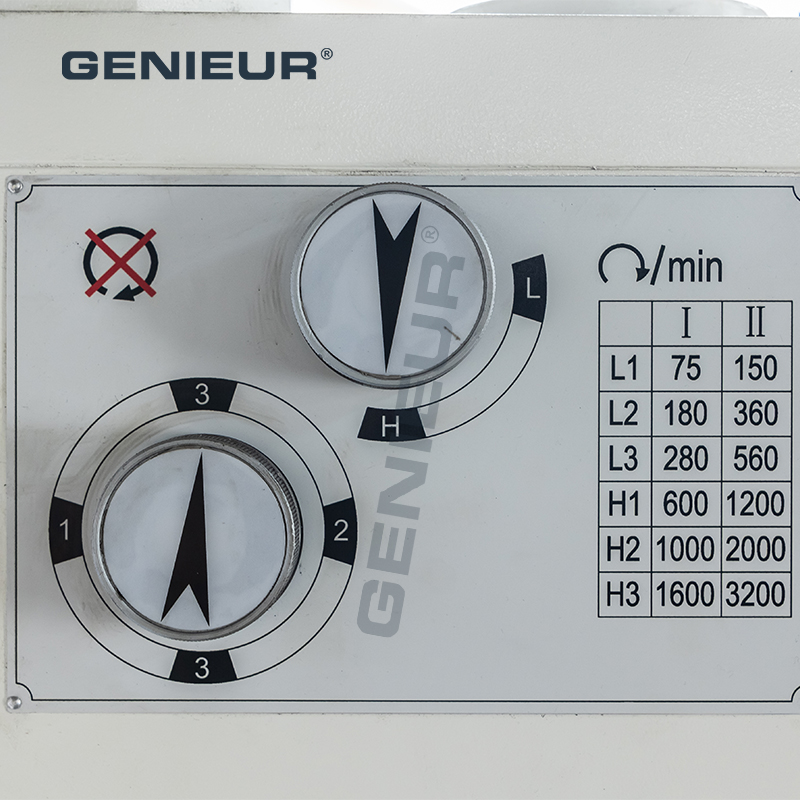

Spindle Speeds Range (12steps):75~3200rpm
Speed Power Feed Range:0.06/0.12/0.18mm/r
Diameter Of Column:125mm
Worktable Size:460x460mm
Base Size:620x450mm
Width Of T-Slot:14mm
Main Motor (2 Speed Motor):1.5/1.1kw
Packing Size:2100x400x640mm
N.W./G.W.:310/350kg

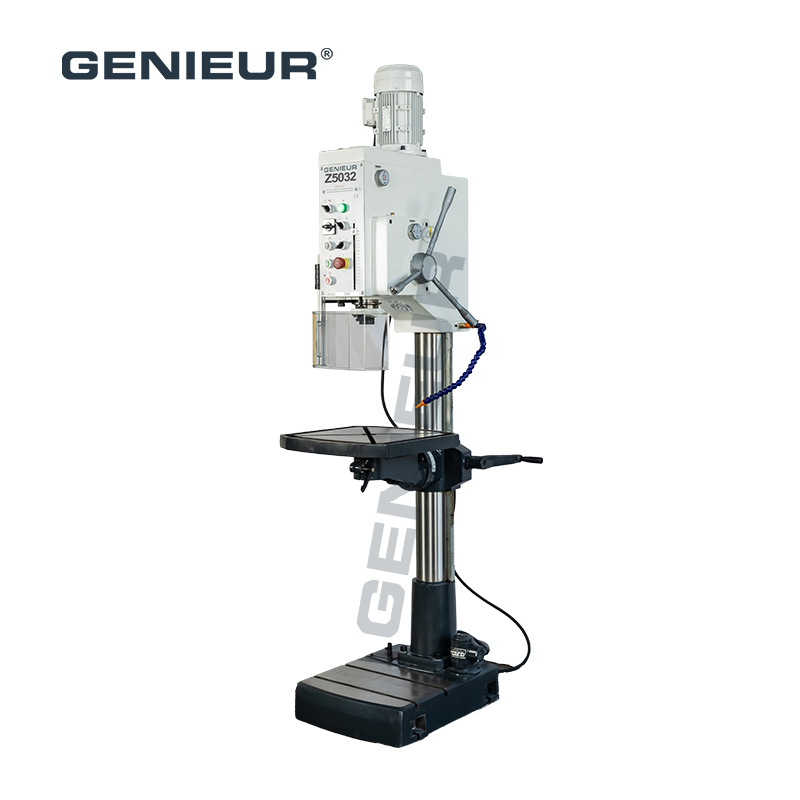

The Z5032 vertical drilling machine, known as 12-Step speed 160mm spindle travel 720mm max. distance from spindle nose to worktable drilling machine for metal drilling tasks, is a reliable choice for metalworking professionals. Its 12-step speed adjustment caters to diverse metal materials, ensuring precise drilling for steel, aluminum, and cast iron.
12-Step speed 160mm spindle travel 720mm max. distance from spindle nose to worktable drilling machine for metal drilling tasks boasts 160mm spindle travel for deep-hole drilling and 720mm max spindle-to-worktable distance, accommodating large workpieces.
12-Step speed 160mm spindle travel 720mm max. distance from spindle nose to worktable drilling machine for metal drilling tasks features low noise, and overload protection. It supports drilling and reaming, enhancing versatility. With easy operation and durable construction, 12-Step speed 160mm spindle travel 720mm max. distance from spindle nose to worktable drilling machine for metal drilling tasks balances performance and affordability, making it a valuable investment for workshops seeking efficient metal drilling solutions. It meets CE standards, ensuring safety and reliability for long-term use.
