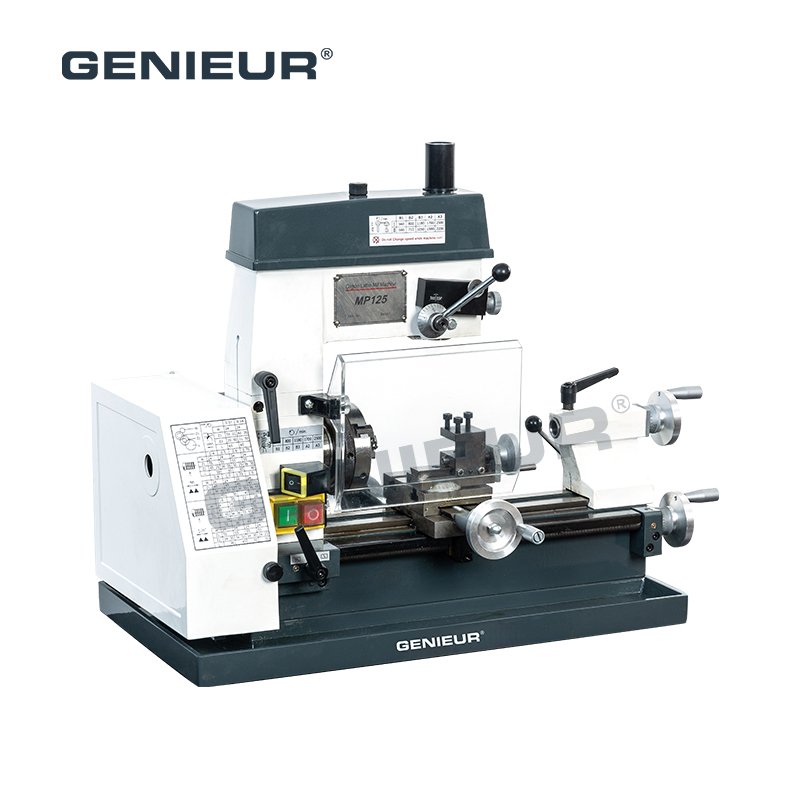

125mm Swing Over Bed 180mm Workpiece Length MT1 Spindle Taper Combination Lathe Milling Machine for Educational Use

Model:MP125
Lathe:
Swing Diameter Over Bed:125mm
Length Of Work Piece:180mm
Swing Diameter Over Tool Post:60mm
Spindle Bore:9mm
Spindle Taper:MT1
Metric Thread Types On Processing:8
Metric Thread Pitch On Processing:0.4~1.5mm
Inch Thread Types On Processing:8
Inch Thread Pitch On Processing:0.0208~0.0625inch
Longitudinal Feed On Spindle Tool Post:0.07~0.13mm
Taper Of Hole In Tail Stock:MT1
Motor:125w
Spindle Speed Scope (5 Steps):560~2500rpm
Mill & Drill:
Max. Drilling Capacity:6mm
Distance From Bench To Spindle Nose:120~180mm
Distance Between Spindle Center To Column:125mm
Swivel Angle Of Drill-Mill Head Stock:360°
Motor:125w
Spindle Speed Range (10 Steps):500~2500rpm
Width Of Working Surface Of Table:65mm
Length Of Working Surface Of Table:85mm
Width Of T-Shaped Groove:8mm
Stroke On Spindle Sleeve:40mm

Description

125mm swing over bed 180mm workpiece length MT1 spindle taper combination lathe milling machine for educational use is tailor-made for vocational schools, technical colleges and training centers, balancing safety, operability and precision for student learning. Its 125mm swing over bed and 180mm workpiece length are perfectly sized for educational projects, allowing students to practice basic turning, milling, drilling and threading with ease.

Equipped with an MT1 spindle taper, 125mm swing over bed 180mm workpiece length MT1 spindle taper combination lathe milling machine for educational use ensures secure tool mounting and smooth operation—ideal for beginners mastering machining fundamentals. The machine features a compact, user-friendly design with clear speed markings and safety guards, complying with educational equipment safety standards to protect students during practice.

MP125 integrates multiple machining functions, helping students build comprehensive skills without switching equipment. 125mm swing over bed 180mm workpiece length MT1 spindle taper combination lathe milling machine for educational use is a cost-effective, reliable educational tool that bridges theory and practice, shaping the next generation of machining professionals.
