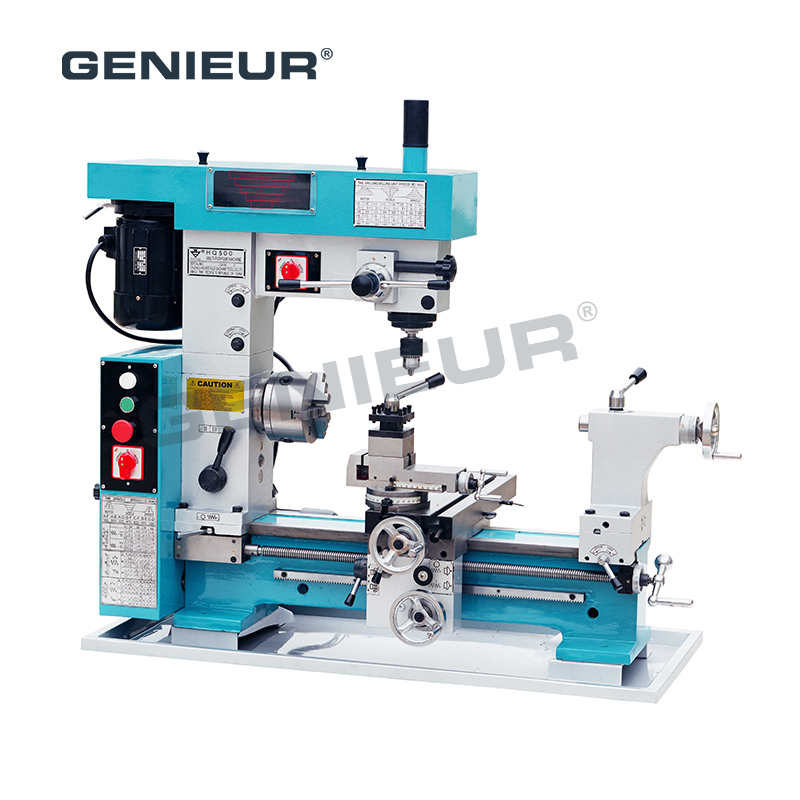

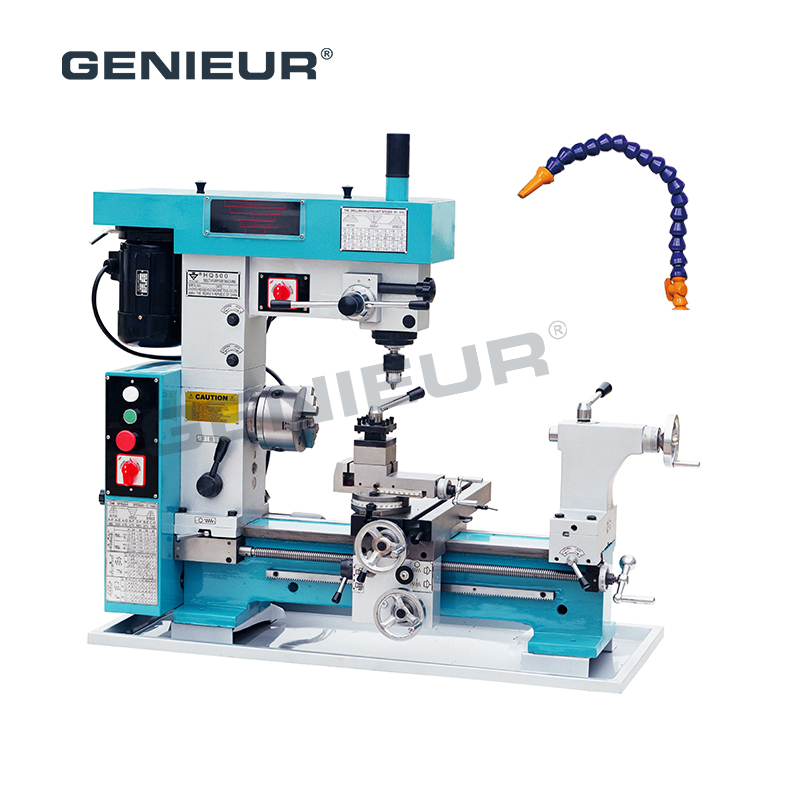

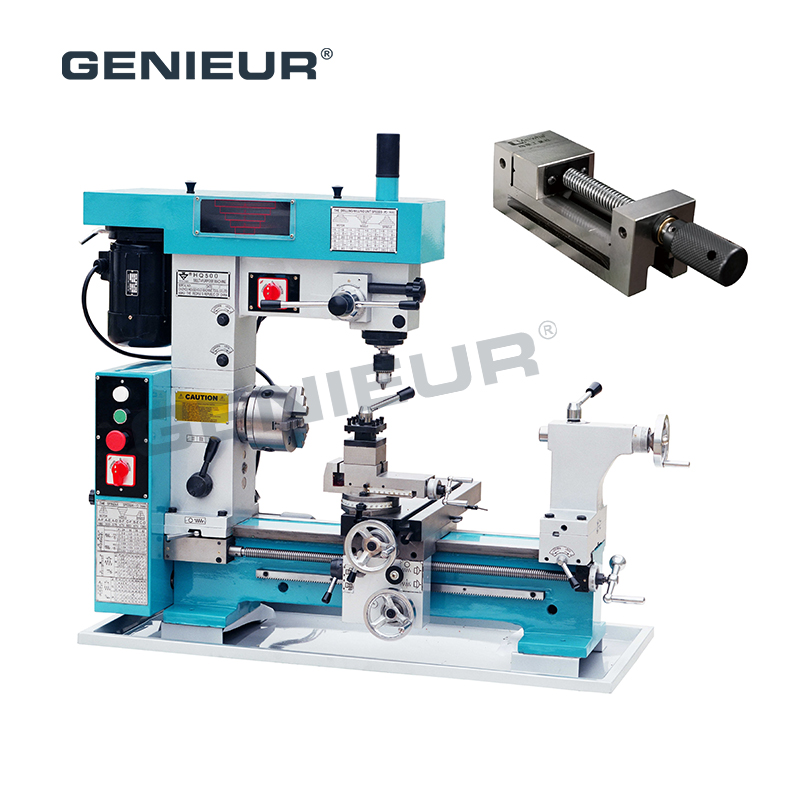

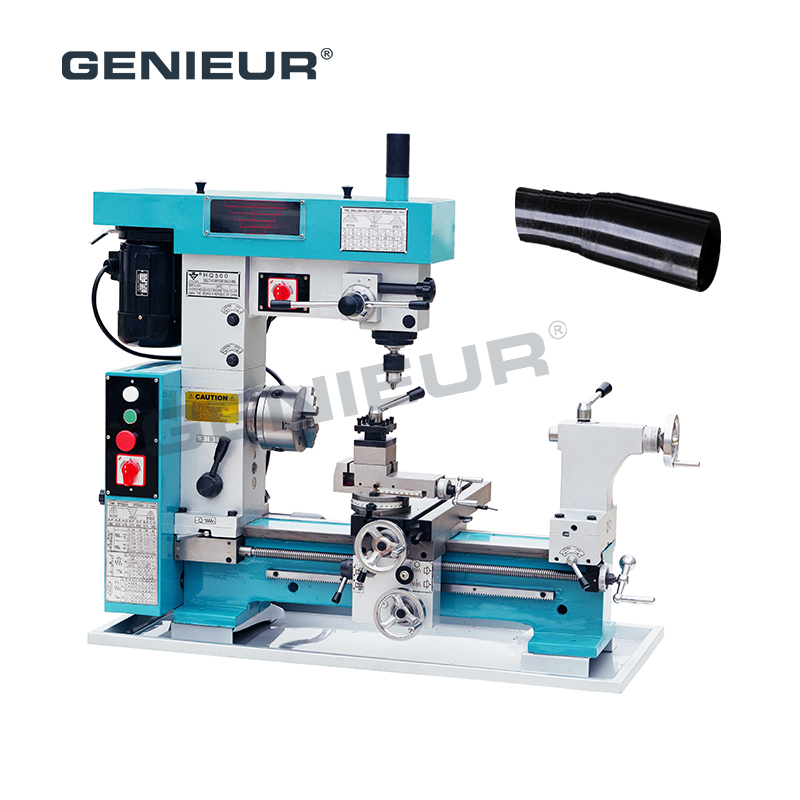

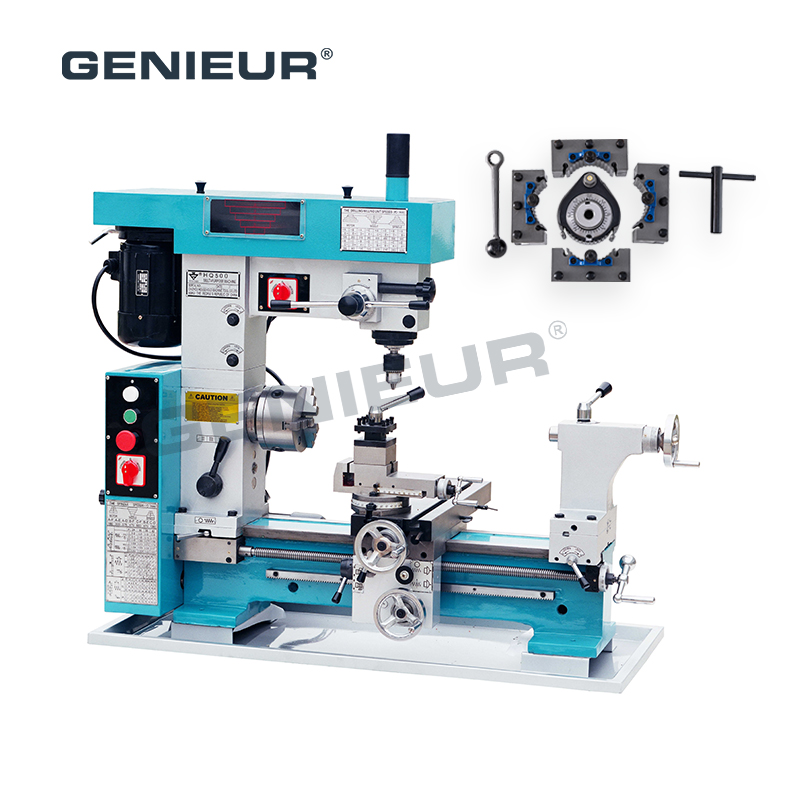

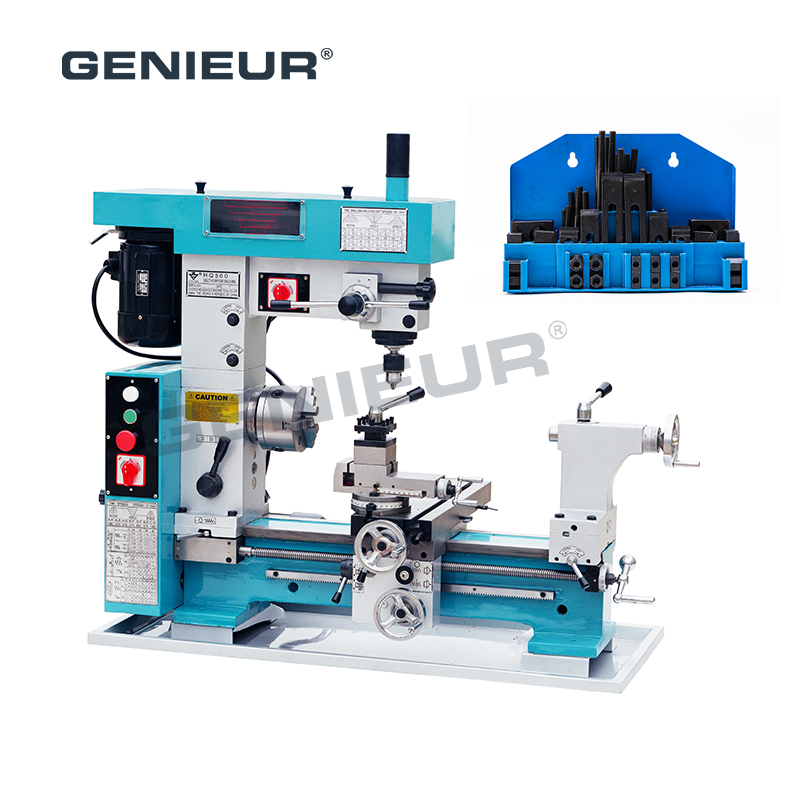

Model:HQ500
Lathe:
Turning Diameter (Max.):∅420mm
Distance Between Centers:500mm
Width Of Bed:138mm
Spindle Bore:∅28mm
Taper Of Spindle Bore:MT4
Spindle Speed (7 Steps):160~1360rpm
Travel Cross Slide:195mm
Range Of Metric Threads:0.2~6mm
Range Of Inch Threads:4~120T.P.I
Tailstock Quill Diameter:32mm
Tailstock Quill Travel:70mm
Taper Of Tailstock Quill:MT3
Motor Power:750w
Mill & Drill:
Taper Of Spindle Bore:MT3
Spindle Travel:110mm
Max. Drilling Capacity:∅22mm
Face Milling Capacity:∅80mm
Spindle Speed (16 Steps):120~3000rpm
Swivel Degree Of Headstock:360°
Worktable Size(LxW):475x160mm
Motor Power:750w
138mm width of bed 420mm turning diameter MT4 lathe spindle taper combo lathe milling machine for turning and milling stands out as a high-performance workhorse for metal processing. Its 138mm widened bed enhances structural rigidity, minimizing vibration during heavy-duty cutting, while the 420mm maximum turning diameter handles large workpieces with exceptional stability.
Equipped with an MT4 lathe spindle taper, 138mm width of bed 420mm turning diameter MT4 lathe spindle taper combo lathe milling machine for turning and milling ensures tight tool clamping and reliable torque transmission, ideal for high-precision turning, milling, drilling and threading operations. The spindle’s 28mm bore and 160-1360RPM speed range adapt seamlessly to diverse materials, from steel and aluminum to alloys.
Boasting a 360° swiveling milling head and 22mm maximum drilling capacity, HQ500 enables one-clamp multi-process machining, boosting efficiency for workshops. 138mm width of bed 420mm turning diameter MT4 lathe spindle taper combo lathe milling machine for turning and milling blends durability, versatility and precision, making it a top choice for small-batch production, parts repair and technical education.
