Model:Z5050
Max. Drilling Capacity:50mm
Max. Tapping Diameter:M33
Spindle Taper:MT4
Spindle Stroke:210mm
Spindle Center To Column Surface:375mm
Spindle Nose To Worktable:80-800mm
Spindle Nose To Base:1325mm
Spindle Speeds Range (12steps):55~1450rpm
Speed Power Feed Range (4steps):0.1/0.2/0.3/0.4mm/r
Diameter Of Column:180mm
Worktable Size:580x580mm
Base Size:860x580mm
Width Of T-Slot:4-18mm
Main Motor:3kw
Packing Size:2270x580x1100mm
N.W./G.W.:760/860kg

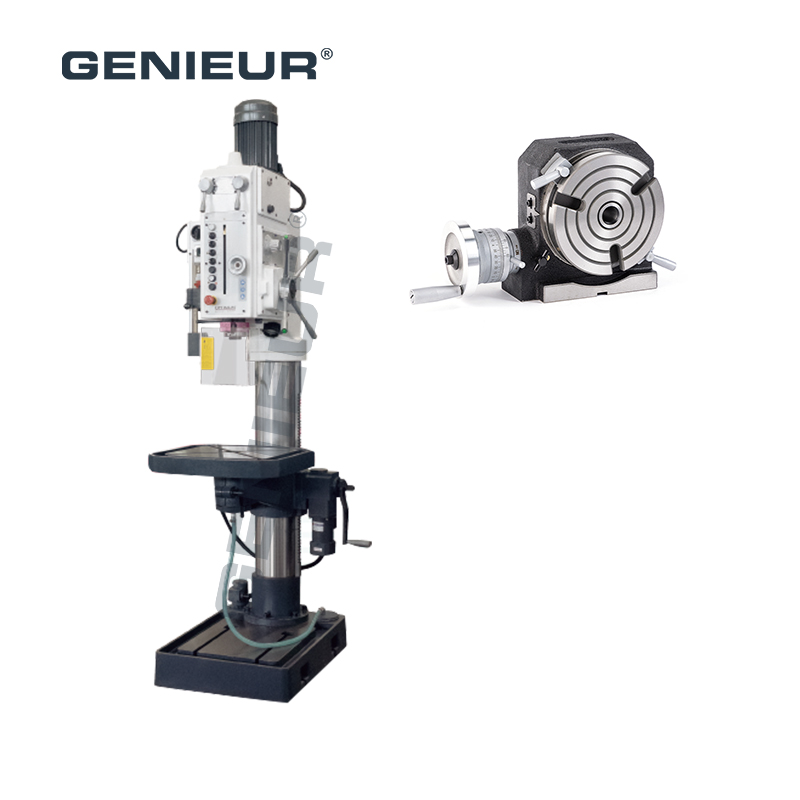

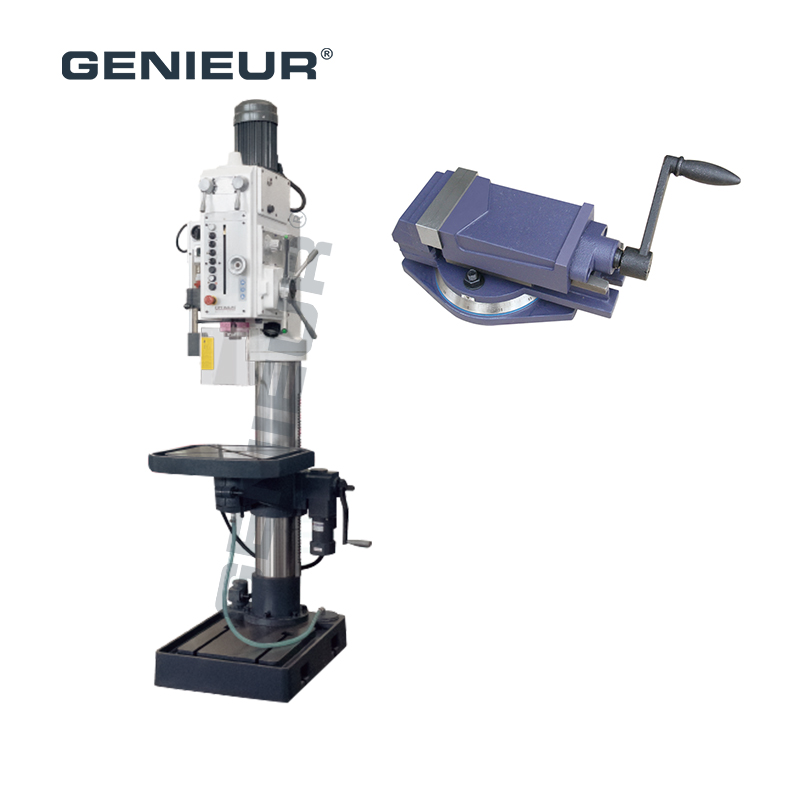

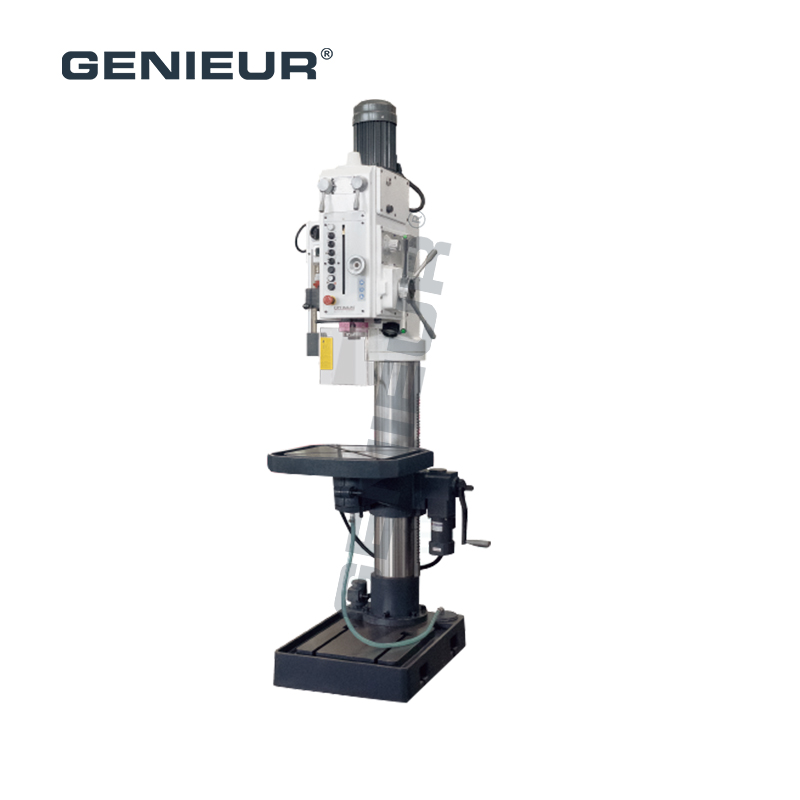

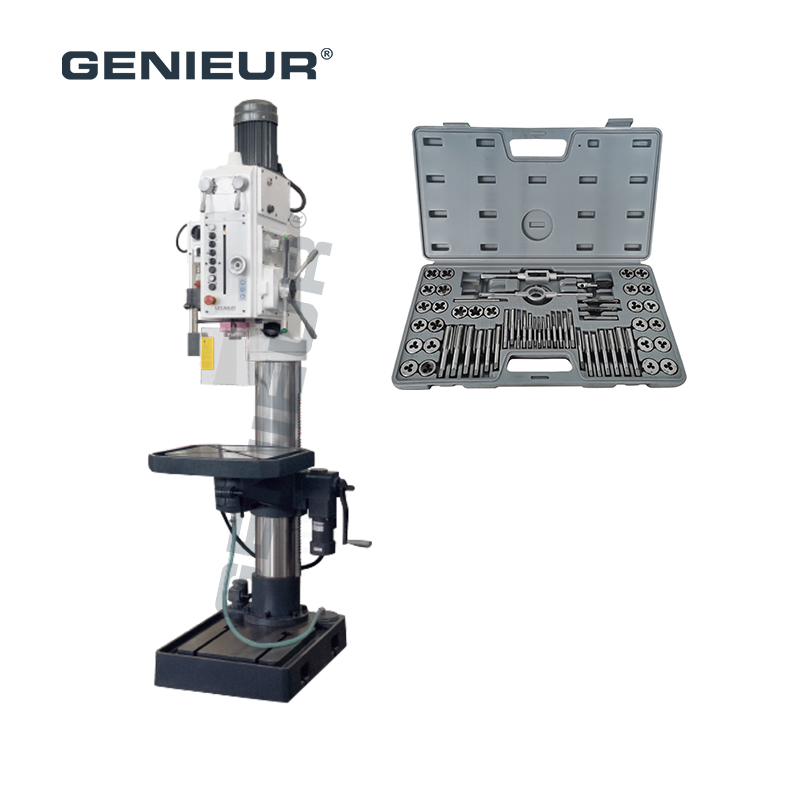

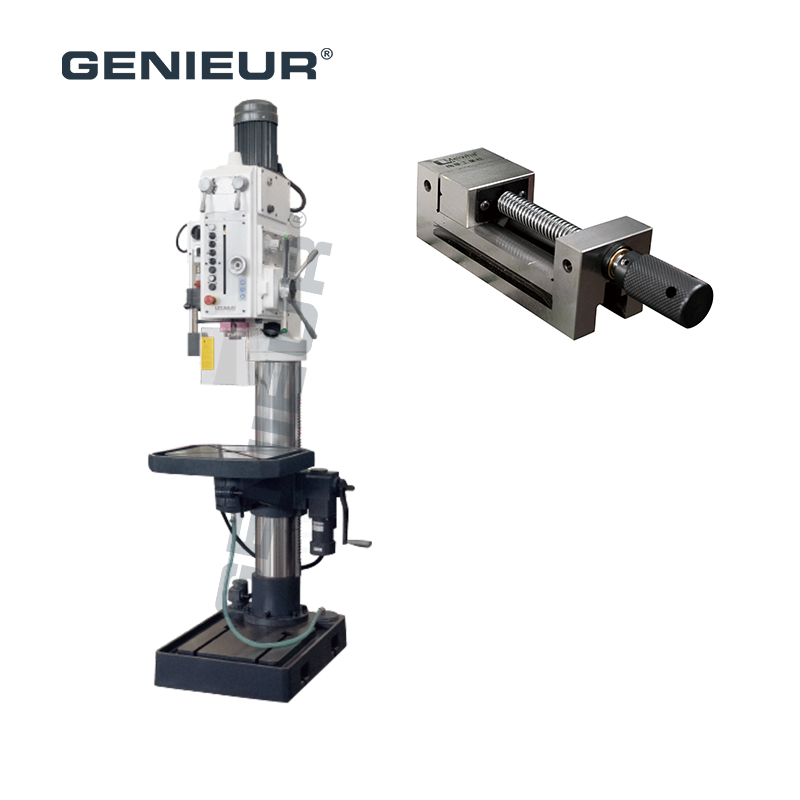

The Z5050 vertical drilling machine is a practical industrial machine, fully embodying the advantages of the 210mm spindle travel 50mm max. drilling diameter 4 T-Slot drilling machine for industrial workshop heavy-duty drilling. Its 210mm spindle travel ensures deep, precise drilling strokes, while the 50mm maximum drilling diameter handles tough materials like alloy steel and cast iron with ease.
Equipped with 4 T-slots on the worktable, the Z5050 enables secure clamping of large or irregular workpieces, a key highlight of the 210mm spindle travel 50mm max. drilling diameter 4 T-Slot drilling machine for industrial workshop heavy-duty drilling, boosting operational safety and efficiency during continuous heavy-duty tasks.
Powered by a 3KW high-torque motor and 12-step variable speeds (55-1450RPM), it adapts to diverse drilling needs, while the rigid MT4 spindle ensures stable power transmission and long-term durability—core strengths of the 210mm spindle travel 50mm max. drilling diameter 4 T-Slot drilling machine for industrial workshop heavy-duty drilling.
