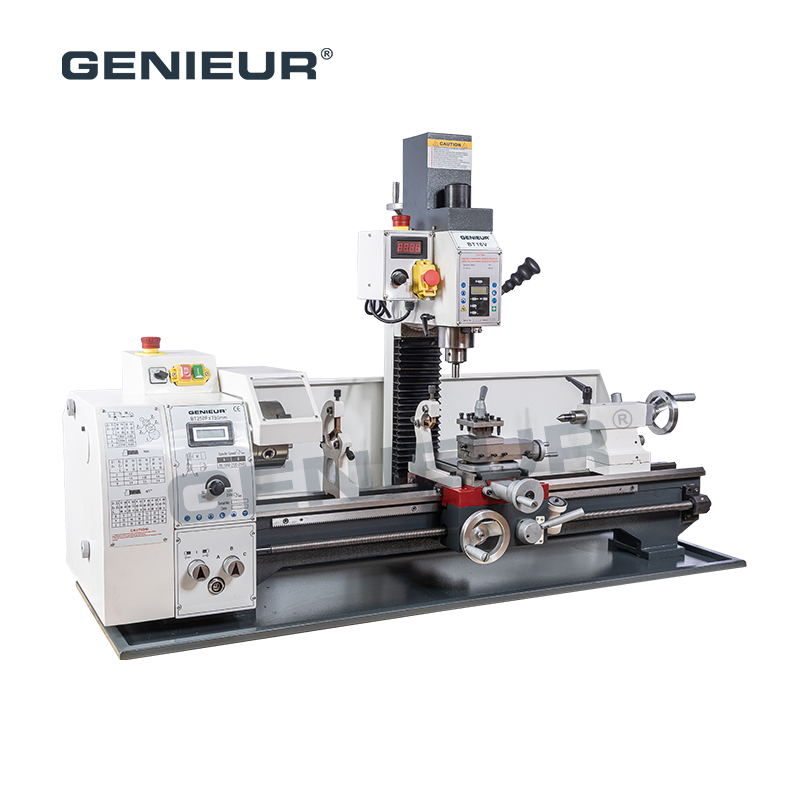

250mm Turning Diameter 550mm/750mm Center Distance Variable Speed Lathe Mill Combo Machine for Metal Machining

Model:BTP250F
Lathe:
Turning Diameter (Max.):∅250mm
Swing Over Cross Slide:∅150mm
Distance Between Centers:550/750mm (Optional)
Spindle Bore:∅26mm
Taper Of Spindle Bore:MT4
Variable Speed:50~2500rpm
Top Slide Travel:70mm
Cross Slide Travel:120mm
Range Of Metric Threads:0.2~3.5mm
Range Of Inch Threads:8~56T.P.I
Tailstock Quill Travel:60mm
Taper Of Tailstock Quill:MT2
Motor Power:750w
Voltage/AC:110V~380V/ 50~60Hz
Mill & Drill:
Face Milling Capacity:∅50mm
Taper Of Spindle Bore:MT2/R8
Spindle Travel:52mm
Max. Drilling Capacity:∅16mm
Range Of Spindle Speed:50~2250rpm
Motor Power:600w
Head Tilt Left And Right:±45°
Packing Size:(1220/1400)x630x860mm

Description

250mm turning diameter 550mm/750mm center distance variable speed lathe mill combo machine for metal machining is a versatile all-in-one solution for metalworking workshops. Designed to integrate turning, milling and drilling functions, it eliminates the need for multiple machines, saving workspace and boosting efficiency.

With a 250mm maximum turning diameter and optional 550mm/750mm center distance, this BTP250F handles diverse workpieces from small precision parts to longer components. 250mm turning diameter 550mm/750mm center distance variable speed lathe mill combo machine for metal machining features variable speed (50-2500 RPM for lathe, 50-2250 RPM for mill) and ±45° mill head tilt for flexible operations.

Equipped with a 750W lathe motor and 600W mill motor, it delivers stable power for cutting aluminum, brass and steel. Its heavy-duty construction ensures rigidity, while standard accessories like a 3-jaw chuck and drill chuck enhance usability. 250mm turning diameter 550mm/750mm center distance variable speed lathe mill combo machine for metal machining is ideal for hobbyists, small manufacturers and repair shops, balancing precision, versatility and cost-effectiveness.
