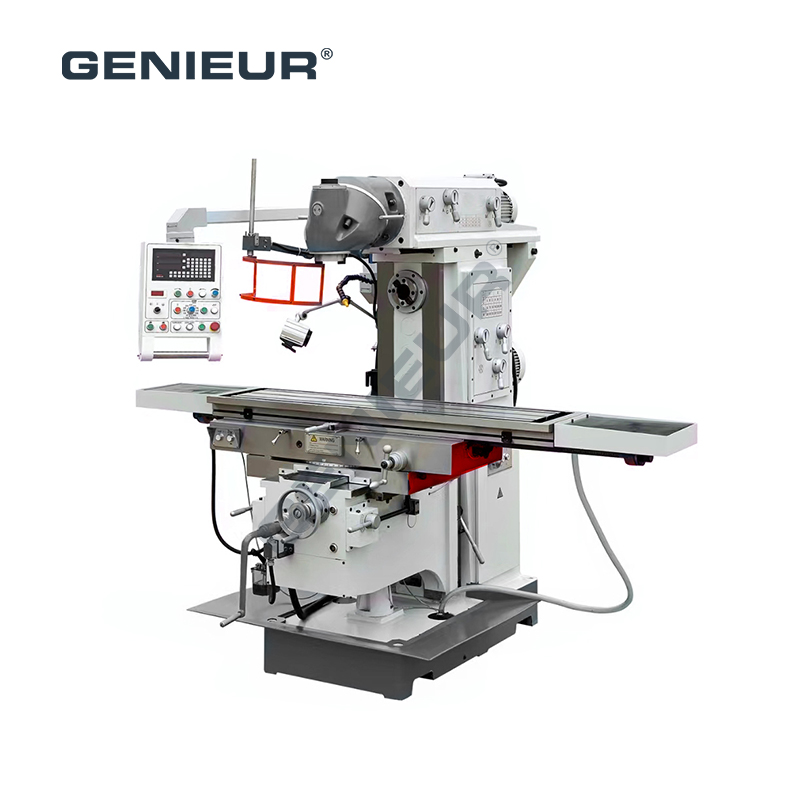

Model:BFX6436
Vertical Spindle:
Distance From Vertical Spindle To Table:170~590mm
Spindle Taper:7:24 ISO50
Steps Of Spindle Speed:12
Range Of Spindle Feed:60~1750rpm
Horizontal Spindle:
Spindle Taper:7:24 ISO50
Steps Of Spindle Speed:12
Range Of Spindle Feed:58~1800rpm
Distance From Horizontal Spindle To Table:0~420mm
Distance From Table Center To Column:230~530mm
Worktable:
Working Table Size:1650x360mm
Worktable X/Y/Z-Axis Travel:1300x300x420mm
Longitudinal/Cross Feed Speed:25~800mm/min
Vertical Feed Speed:8~267mm/min
T-Slot Of Table(Number/Width/Distance):3/14/95mm
Table Of Swivel:±35°
Ram Travel:500mm
Main Motor:4kw(V)/5.5kw(H)
Table Feed Motor:1.8kw
Coolant Motor:0.09kw
Packing Size:2550x2160x2100mm
N.W./G.W.:2850/3150kg
Designed for demanding industrial applications, 3-Axis ISO50 spindle taper 12-Step speed universal milling machine for metal processing redefines efficiency with its signature ISO50 spindle taper and 12-step speed regulation, making BFX6436 a reliable choice for complex metal machining tasks.
The ISO50 spindle taper of this universal milling machine, featuring a 7:24 ratio, ensures exceptional rigidity and clamping precision, with a large contact area to withstand heavy cutting forces. Its 12-step speed settings offer flexible speed adjustment, allowing 3-Axis ISO50 spindle taper 12-Step speed universal milling machine for metal processing to seamlessly adapt to diverse metal materials—from carbon steel to alloy metals—for optimal cutting performance in every scenario.
Equipped with automatic feeds, 3-Axis ISO50 spindle taper 12-Step speed universal milling machine for metal processing enables precise positioning and smooth operation, while its dovetail slides enhance processing flexibility.
