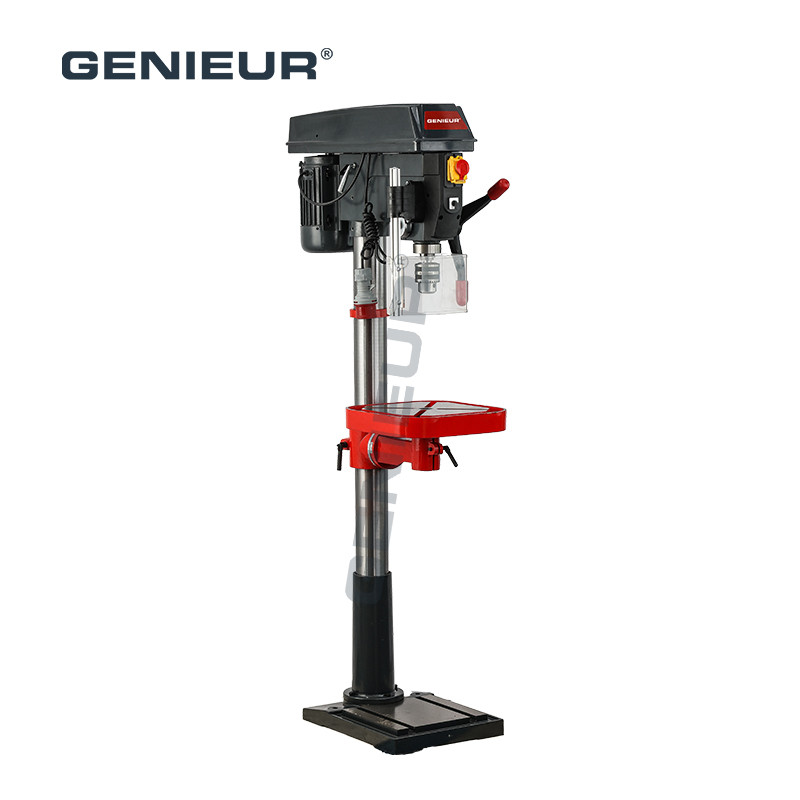

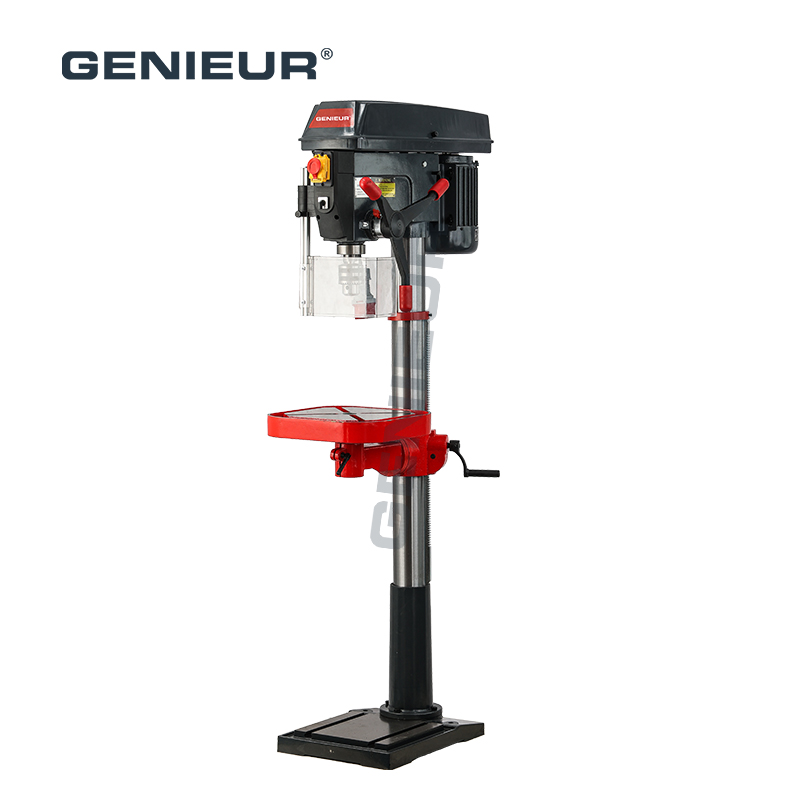

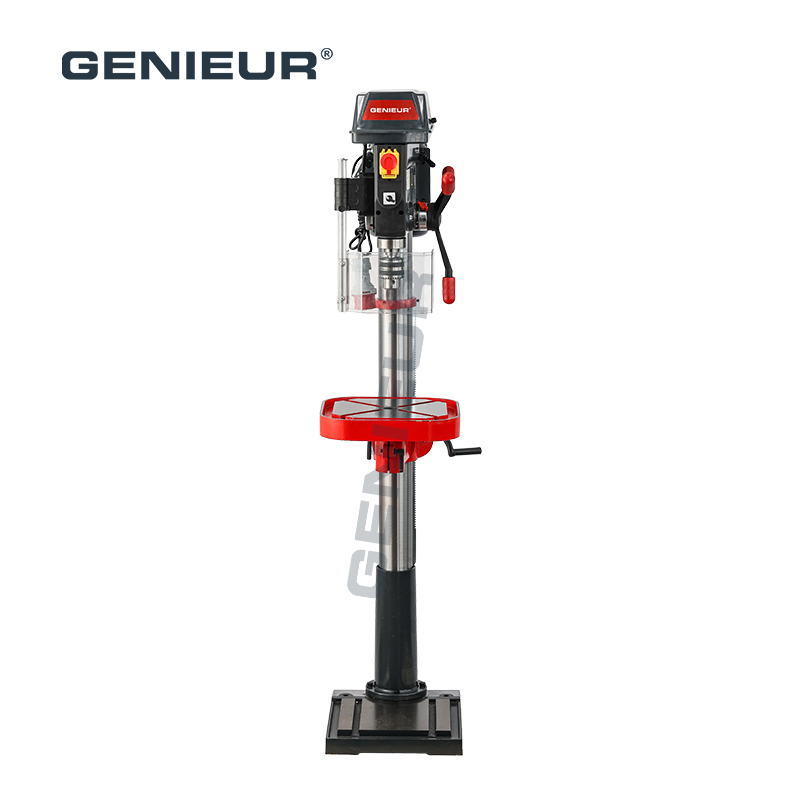

32mm Max. Drilling Diameter 92mm Column 470x360mm Base Drill Press for Factory Production

Model:ZJQ5132
Max. Drilling Diameter:∅32mm (1-1/4”)
Motor Power:1100/1500w

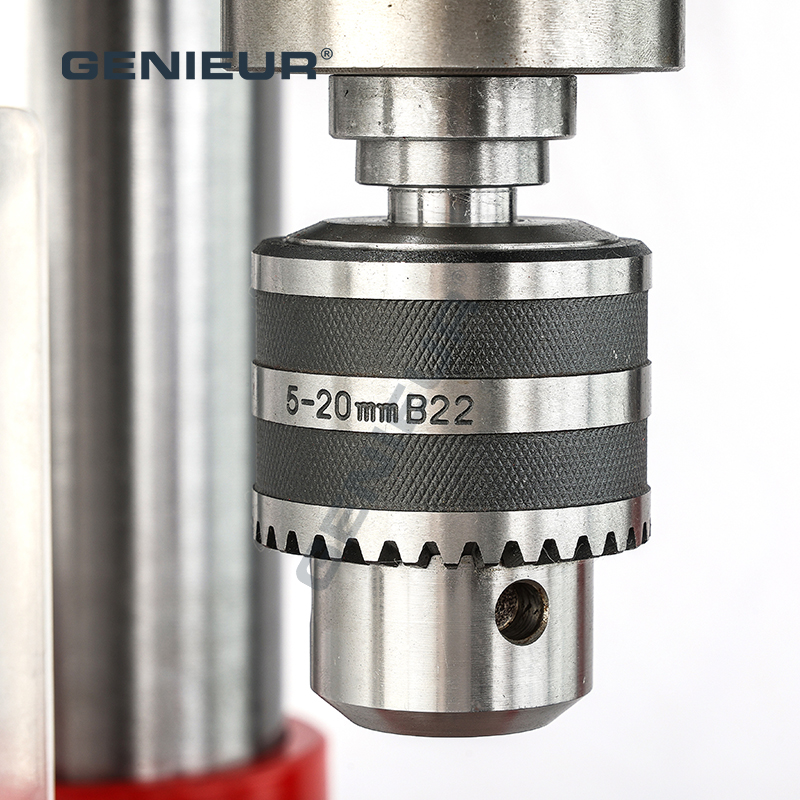

Chuck Capacity:5~20mm

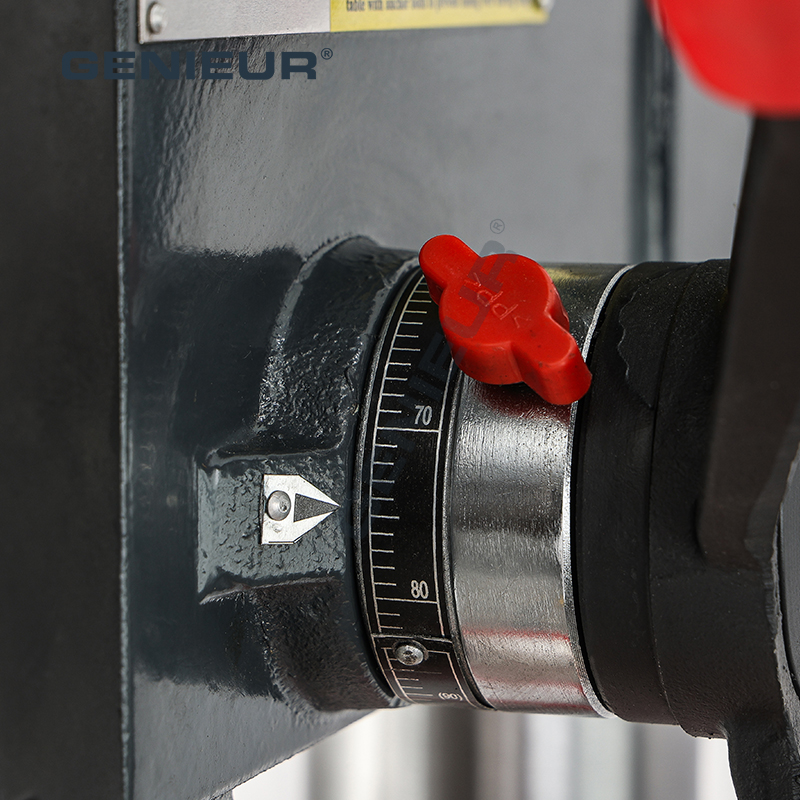

Spindle Travel:120mm
Class Of Speed:12
Speed50/60Hz:150~2450/180~2940rpm
Spindle Taper:MT4
Max. Distance From Spindle Axis To Surface Of Column:220mm
Max. Distance From Spindle End To Surface Of Table:700mm
Max. Distance From Spindle End To Surface Of Base:1225mm
Swing:440mm
Table Size:360×360mm
Base Size:470×360mm
Column Diameter:∅92mm
Height:1710mm
N.W./G.W.:115.0/120.0kg
Packing Size:1415×650×305mm

Description

The ZJQ5132 drill press is engineered to redefine efficiency in factory production, perfectly embodying the 32mm max. drilling diameter 92mm column 470x360mm base drill press for factory production. Tailored for high-volume, heavy-duty factory operations, it stands out with its robust design and optimized performance, making it a core tool for metal drilling, component processing, and mass production tasks.

Unlike ordinary drill presses, the ZJQ5132 strictly follows the 32mm max. drilling diameter 92mm column 470x360mm base drill press for factory production standards, delivering unmatched versatility and stability. The 32mm maximum drilling diameter handles thick metal plates and hard materials effortlessly, while the 92mm thickened column ensures minimal vibration during high-speed operation, guaranteeing precise drilling results every time.

Its 470x360mm enlarged base, a key feature of the 32mm max. drilling diameter 92mm column 470x360mm base drill press for factory production, provides exceptional load-bearing capacity, preventing tipping even when processing large workpieces. Equipped with a high-torque motor, stepless speed regulation, and a durable MT4 spindle, it adapts to diverse factory needs, reducing downtime and boosting productivity.
