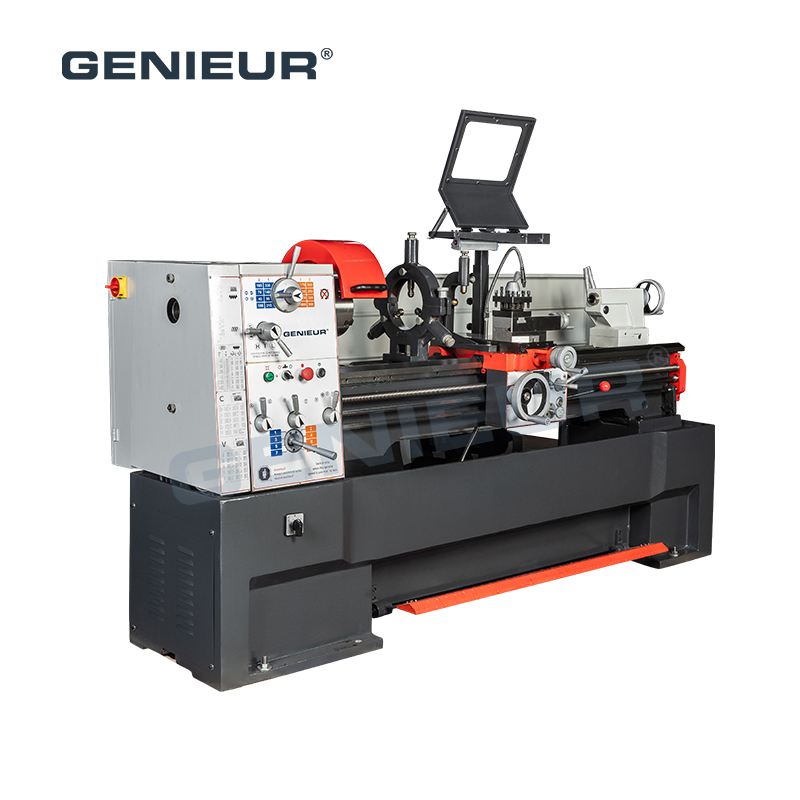

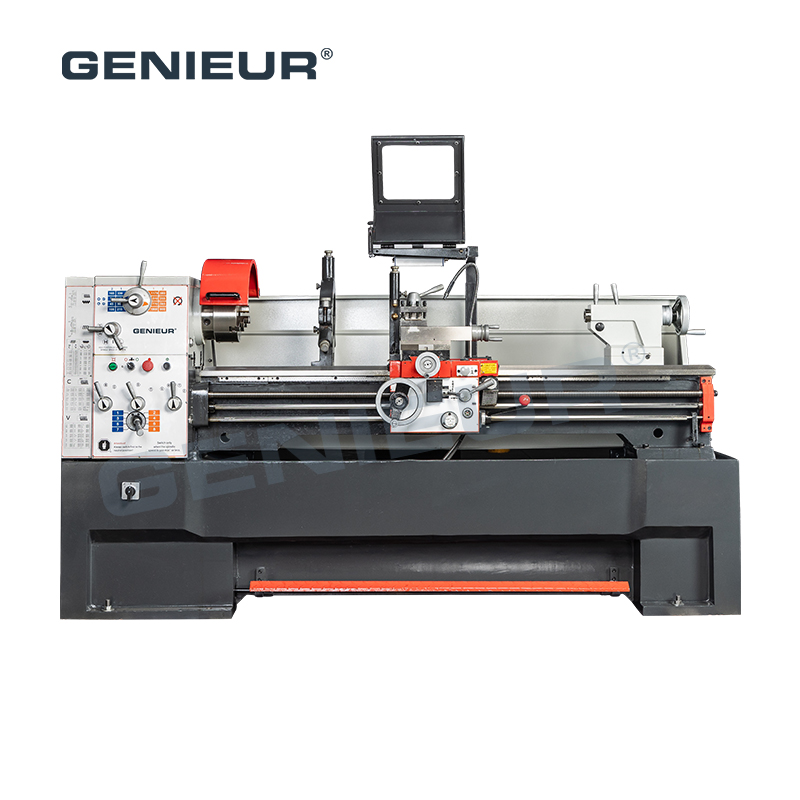

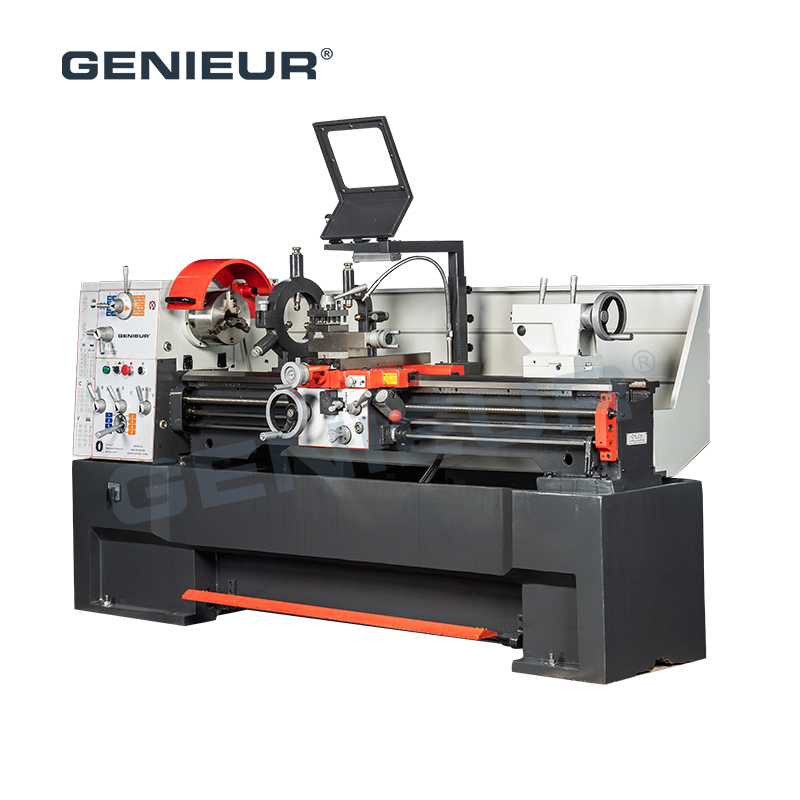

Model:BT410
Turning Diameter (Max.):∅410mm
Swing Over Cross Slide:∅255mm
Swing In Gap Diameter:∅580mm
Valid Length Of Gap:190mm
Distance Between Centers:1000/1500mm
Center Height:205mm
Width Of Bed:250mm
Spindle Nose:D1-6
Spindle Bore:∅52mm
Taper Of Spindle Bore:MT6
Spindle Speed (16 Steps):45~1800rpm
Top Slide Travel:140mm
Cross Slide Travel:210mm
Max. Section Of Tools:20x20mm
Range Of Metric Threads (39 Kinds):0.2~14mm
Range Of Inch Threads (45 Kinds):2~72T.P.I
Lead Screw Thread:6mm or 4T.P.I
Tailstock Quill Diameter:∅50mm
Tailstock Quill Travel:120mm
Taper Of Tailstock Quill:MT4
Motor Power (Double Motor):2.2/3.3kw
Coolant Pump Motor:100w
Voltage:380V~440V(3PH)
Packing Size:(2060/2560)x900x1640mm
Versatile enough to serve industries ranging from automotive part manufacturing to general mechanical processing, 410mm 52mm spindle bore manual lathe machine with saddle for disc parts processing excels in turning, threading, and facing operations. Its compact footprint optimizes factory floor space utilization, while the integrated coolant system guarantees efficient heat dissipation during high-speed machining, preserving workpiece integrity and tool life.
Backed by rigorous pre-delivery cutting tests, 410mm 52mm spindle bore manual lathe machine with saddle for disc parts processing stands as a high-precision, durable solution tailored to meet the relentless demands of modern factory production.

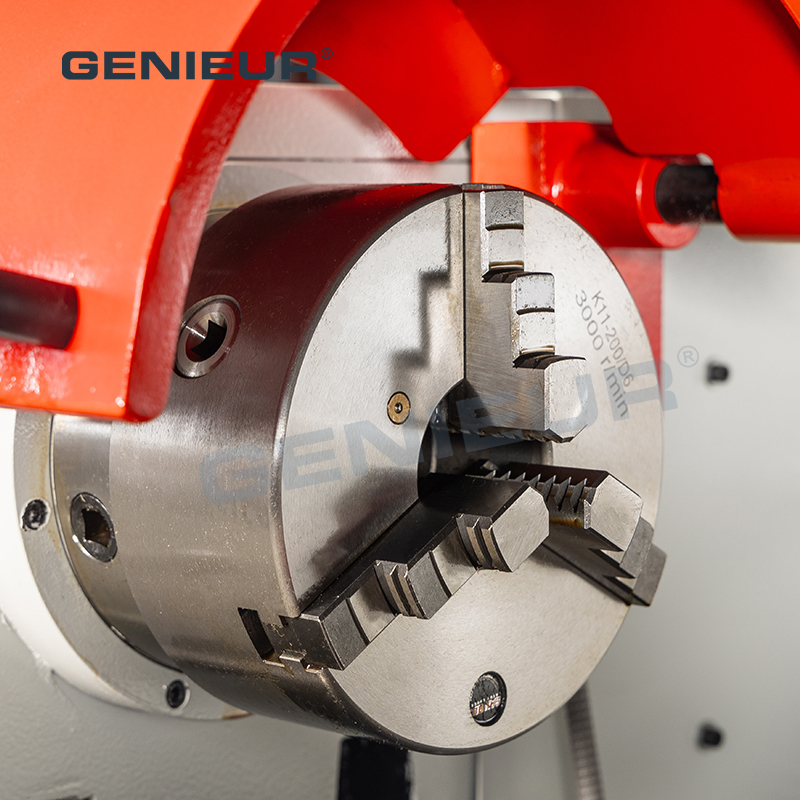

410mm 52mm spindle bore manual lathe machine with saddle for disc parts processing comes standard with both 200mm 3-jaw and 250mm 4-jaw chucks, providing flexible clamping solutions for both symmetrical and irregular workpieces, while a removable chip tray and full-chip protection wall maintain a clean working environment and operator safety.
