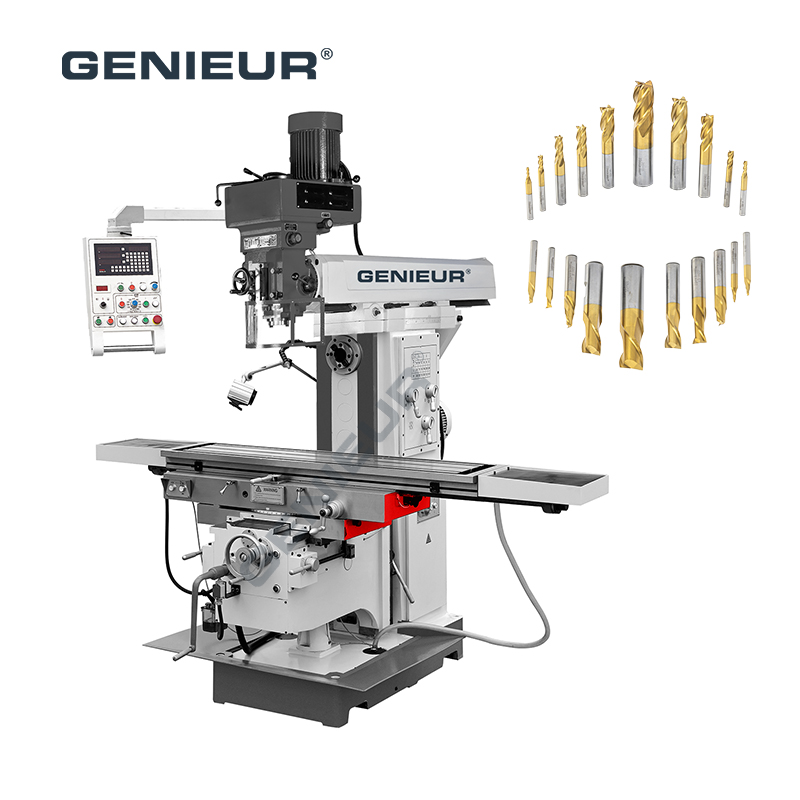

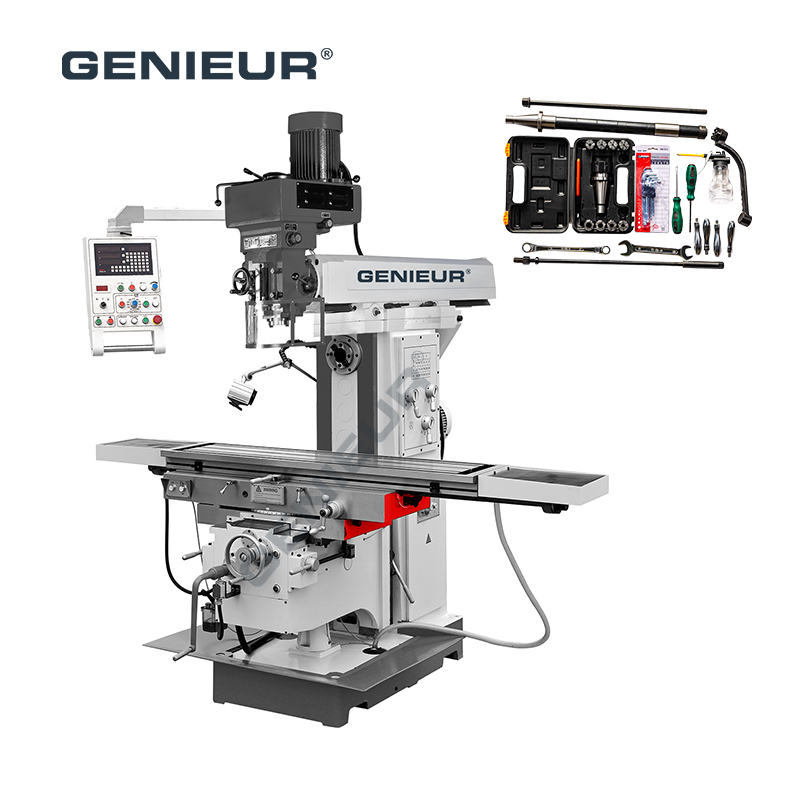

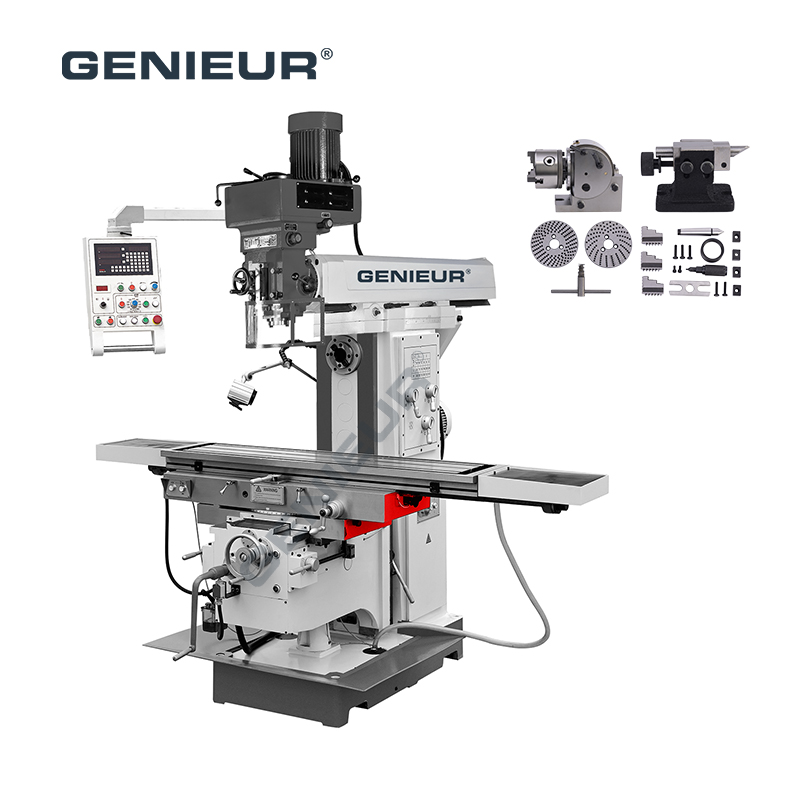

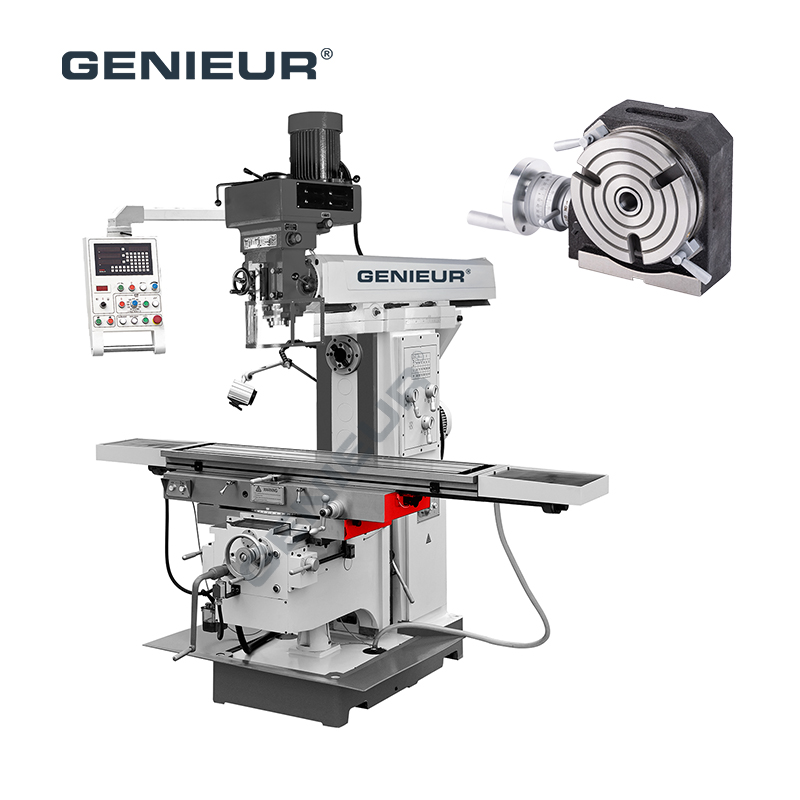

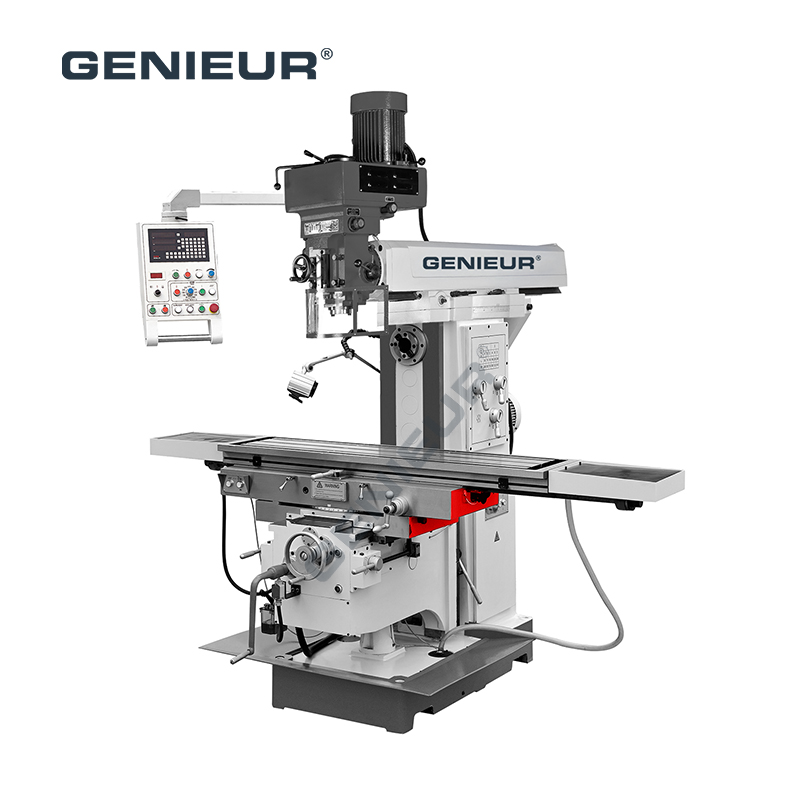

45° Head Swivel 3 T-Slot 660mm Max. Distance From Spindle Nose to Column Universal Milling Machine for Workshop Use

Model:BFX6336
Vertical Spindle:
Distance Spindle Nose To Column:160~660mm
Spindle Taper:ISO40
Steps Of Spindle Speed:10
Range Of Spindle Feed:70~3620rpm
Head Swivel (L&R):±45°
Horizontal Spindle:
Spindle Taper:ISO50
Steps Of Spindle Speed:12
Range Of Spindle Feed:52~1800rpm
Distance Spindle Center To Table:0~420mm
Worktable:
Working Table Size:1650x360mm
Worktable X/Y/Z-Axis Travel:1300x300x420mm
Longitudinal/Cross Feed Speed:25~800mm/min
Vertical Feed Speed:8~267mm/min
T-Slot Of Table(Number/Width/Distance):3/14/95mm
Table Of Swivel:±35°
Ram Travel:500mm
Main Motor:5.5kw(H)/3.7kw(V)
Feed Motor:2.36kw
Coolant Motor:0.09kw
Packing Size:2550x2070x2650mm
N.W./G.W.:2500/2800kg

Description

45° head swivel 3 T-Slot 660mm max. distance from spindle nose to column universal milling machine for workshop use is a versatile workhorse tailored for small-to-medium workshop operations. Its 45° left/right head swivel design enables angled machining without repositioning workpieces, drastically boosting efficiency for bevel cutting and inclined plane processing.

Featuring three precision T-slots on the worktable, this machine securely clamps various workpieces—from small components to irregular parts—ensuring stability during high-speed milling. The 660mm max distance from spindle nose to column provides ample working space, making 45° head swivel 3 T-Slot 660mm max. distance from spindle nose to column universal milling machine for workshop use ideal for large-size workpiece processing in workshops.

45° head swivel 3 T-Slot 660mm max. distance from spindle nose to column universal milling machine for workshop use integrates flexibility and reliability, adapting to drilling, grooving and contouring tasks.
