Model:BT560
Turning Diameter (Max.):∅560mm
Swing Over Cross Slide:∅355mm
Swing In Gap Diameter:∅785mm
Distance Between Centers:1000/1500/2000/3000mm
Center Height:280mm
Width Of Bed:350mm
Spindle Nose:D1-8
Spindle Bore:∅80mm/105mm (Optional)
Taper Of Spindle Bore:MT7/113(1:20) (Optional)
Spindle Speed (12 Steps):25~1600rpm

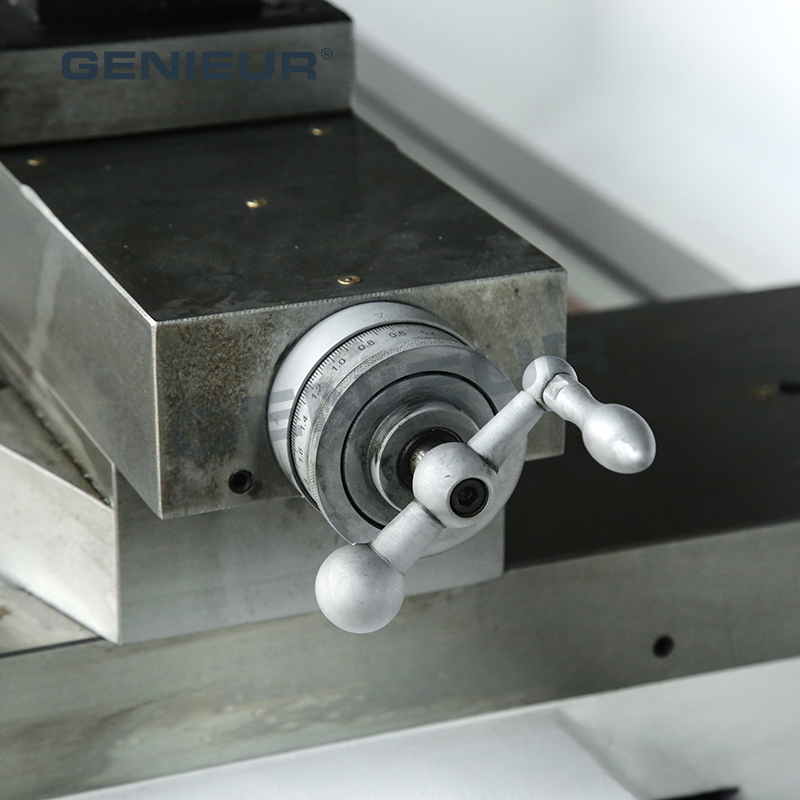

Top Slide Travel:130mm
Cross Slide Travel:316mm
Max. Section Of Tools:25x25mm
Range Of Metric Threads (47 Kinds):0.2~14mm
Range Of Inch Threads (60 Kinds):2~112T.P.I
Lead Screw Thread:6mm or 4T.P.I

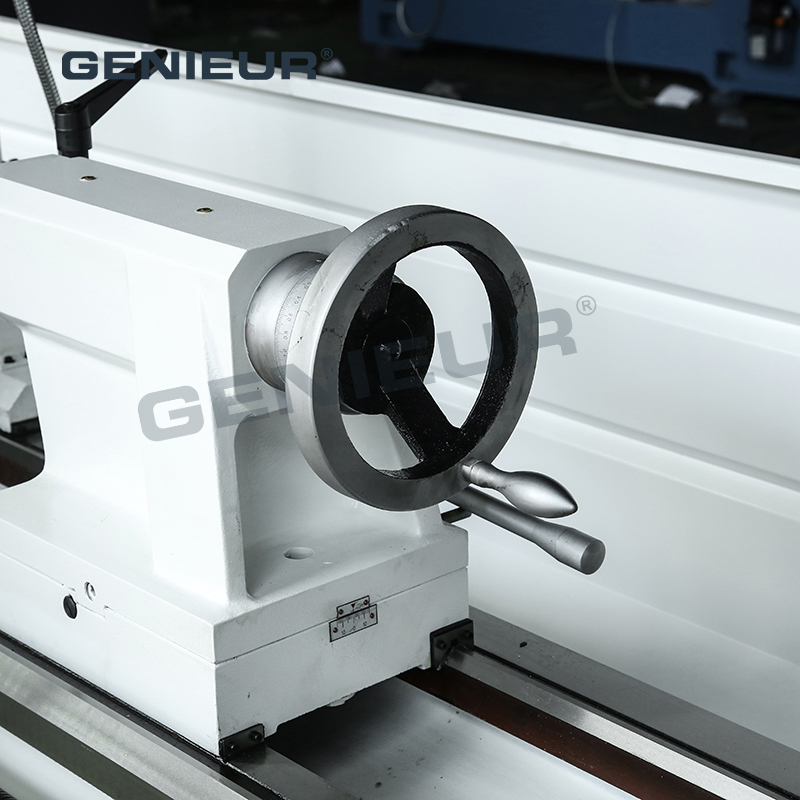

Tailstock Quill Diameter:∅75mm
Tailstock Quill Travel:180mm
Taper Of Tailstock Quill:MT5
Motor Power:7.5kw
Coolant Pump Motor:100w
Voltage:380V~440V(3PH)
Packing Size:(2450/2900/3400/4400)x1190x1740mm

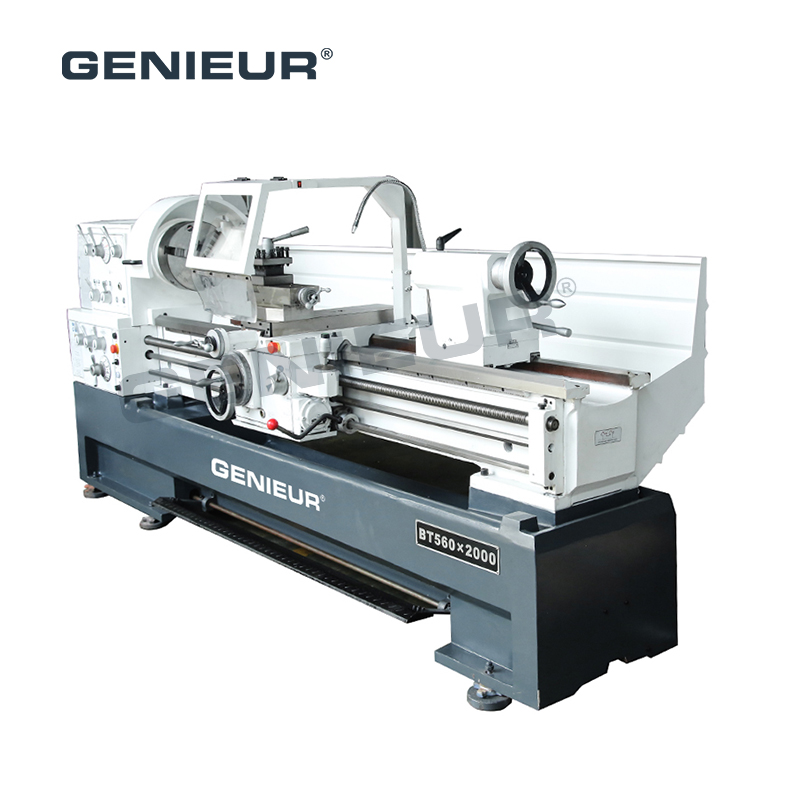

560mm rapid feed 80mm/105mm spindle bore manual lathe machine for metal working is a versatile industrial tool engineered for high-efficiency metal machining. With a 560mm swing over bed, it handles medium-sized workpieces with ease, while dual spindle bore options (80mm/105mm) enable compatibility with various bar diameters, expanding its application scope.
Crafted from high-quality cast iron, 560mm rapid feed 80mm/105mm spindle bore manual lathe machine for metal working boasts exceptional rigidity and stability, ensuring smooth operation during heavy-duty metal cutting tasks.
Whether processing carbon steel, stainless steel, or non-ferrous metals, 560mm rapid feed 80mm/105mm spindle bore manual lathe machine for metal working delivers consistent results. BT560 balances flexibility, efficiency, and durability, making it a must-have for professional metal working scenarios.
