Model:BT410A
Turning Diameter (Max.):∅410mm
Swing Over Cross Slide:∅220mm
Swing In Gap Diameter:∅640mm
Valid Length Of Gap:165mm
Distance Between Centers:1000/1500/2000/3000mm
Center Height:205mm
Width Of Bed:300mm
Spindle Nose:D1-6
Spindle Bore:∅58mm
Taper Of Spindle Bore:MT6
Spindle Speed (12 Steps):25~2000rpm
Top Slide Travel:128mm
Cross Slide Travel:285mm
Max. Section Of Tools:25x25mm
Range Of Metric Threads (41 Kinds):0.1~14mm
Range Of Inch Threads (60 Kinds):2~112T.P.I
Lead Screw Thread:6mm or 4T.P.I
Tailstock Quill Diameter:∅60mm
Tailstock Quill Travel:130mm
Taper Of Tailstock Quill:MT4
Motor Power:5.5kw
Coolant Pump Power:100w
Voltage:380V~440V(3PH)
Packing Size:(2200/2800/3300)x1120x1560mm

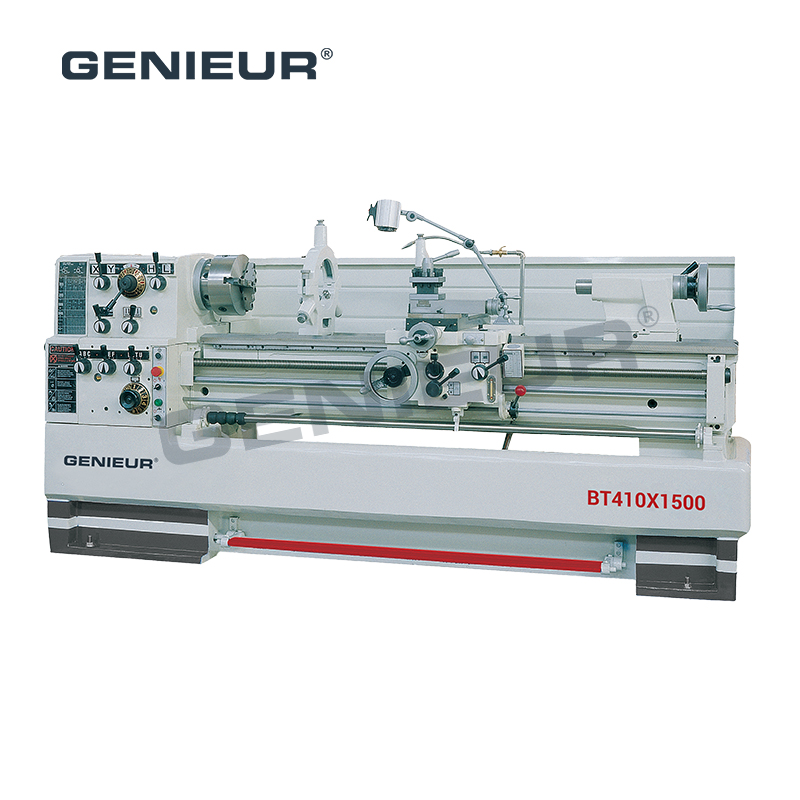

Redefine manual machining efficiency with 58mm spindle bore MT6 rapid feed manual lathe for multi – material processing—your ultimate solution for multi-material processing, engineered with a 58mm large spindle bore, MT6 Morse taper, and high-performance rapid feed system.
58mm spindle bore MT6 rapid feed manual lathe for multi – material processing blends robust versatility with precision control, making it a game-changer for industries ranging from automotive part fabrication to custom metalworking.
At the heart of its multi-material capability lies the 58mm extra-large spindle bore, a standout feature that accommodates oversized workpieces up to 410mm in maximum swing diameter—from thick-walled steel pipes to solid aluminum bars—without compromising stability. Paired with the industry-standard MT6 spindle taper, 58mm spindle bore MT6 rapid feed manual lathe for multi – material processing ensures rock-solid tool holding and seamless power transmission, whether you’re cutting carbon steel, brass, plastic, or non-ferrous alloys.
