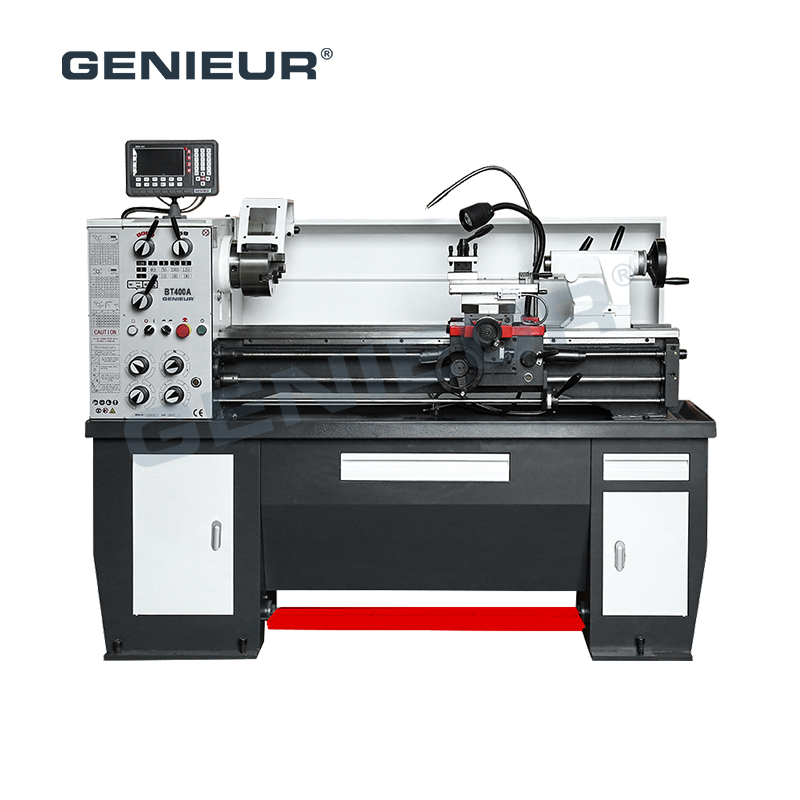

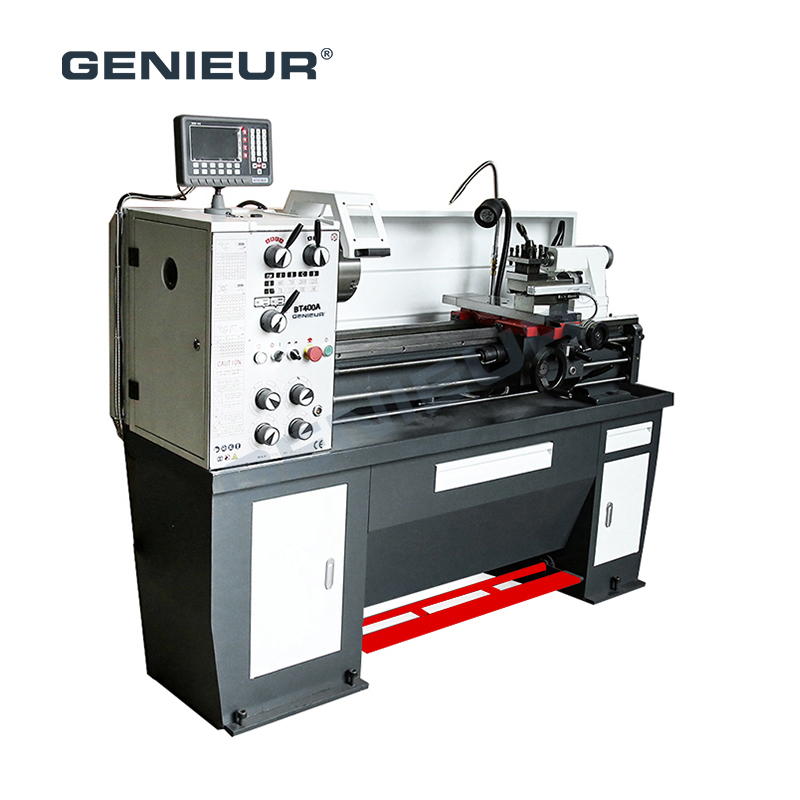

8-Step 70~2000RPM 1000mm Center Distance Metal Lathe Machine for Factory Use

Model:BT400A
Turning Diameter (Max.):∅400mm
Swing Over Cross Slide:∅248mm
Distance Between Centers:1000mm
Center Height:200mm
Width Of Bed:205mm
Spindle Nose:D1-5
Spindle Bore:∅52mm
Taper Of Spindle Bore:MT6
Spindle Speed (8 Steps):70~2000rpm
Top Slide Travel:100mm
Cross Slide Travel:200mm
Max. Section Of Tools:16x16mm
Range Of Metric Threads (26 Kinds):0.4~7mm
Range Of Inch Threads (34 Kinds):4~56 T.P.I
Lead Screw Diameter:∅22mm
Tailstock Quill Diameter:∅42mm
Tailstock Quill Travel:114mm
Taper Of Tailstock Quill:MT4
Motor Power:2.5kw
Coolant Pump Motor:50w
Voltage/AC:380V~440V(3PH)
Packing Size:1930x1270x1600mm

Description

Engineered exclusively for high-demand factory environments, 8-Step 70~2000RPM 1000mm center distance metal lathe machine for factory use redefines precision and versatility with its tailored 8-step speed regulation system, spanning 70 to 2000 RPM, and a generous 1000mm center distance, making it a reliable workhorse for a wide spectrum of metalworking tasks.

At the core of 8-Step 70~2000RPM 1000mm center distance metal lathe machine for factory use performance lies its meticulously calibrated 8-step speed mechanism, which allows operators to seamlessly switch between optimal rotational speeds for different materials—from low-speed heavy cutting of alloy steels to high-speed finishing of aluminum components. This speed range, combined with a maximum turning diameter of 400mm, empowers 8-Step 70~2000RPM 1000mm center distance metal lathe machine for factory use to handle workpieces of varying sizes and hardness with consistent accuracy, a critical advantage for batch production in factory settings.
