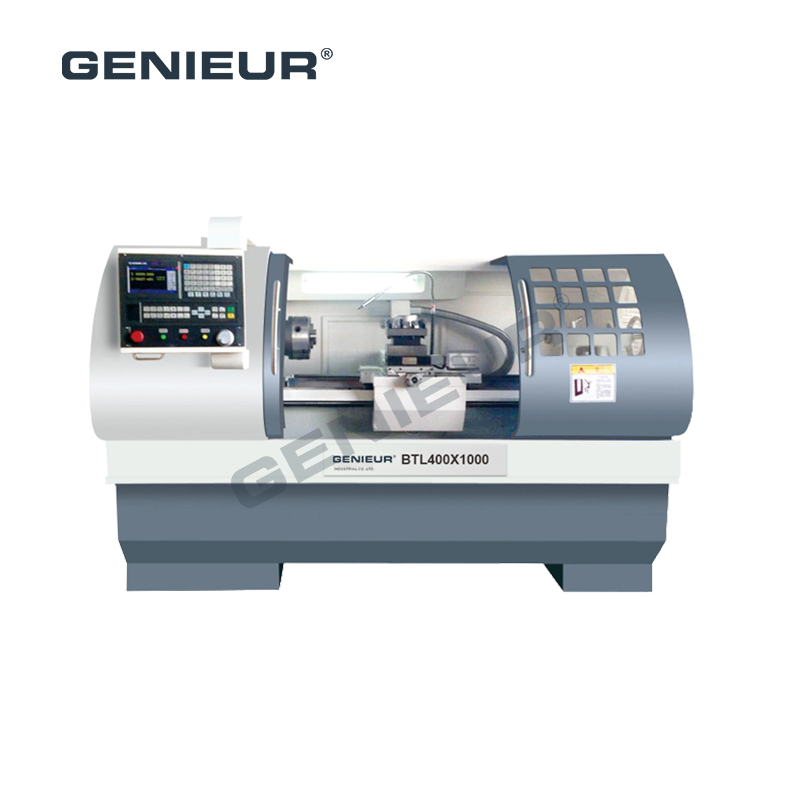

Model:BTL400
Turning Diameter (Max.):∅400mm
Swing Over Cross Slide:∅240mm
Distance Between Centers:750/1000mm (Optional)
Center Height:200mm
Width Of Bed:330mm
Spindle Nose:A2-6
Spindle Bore:∅66/80mm (Optional)
Taper Of Spindle Bore:MT6
Range Of Spindle Speed:30~2500rpm
Spindle Chuck:8″/10″ (Optional)
Max. Travel Of X Axis:210mm
Max. Travel Of Z Axis:750/1000mm

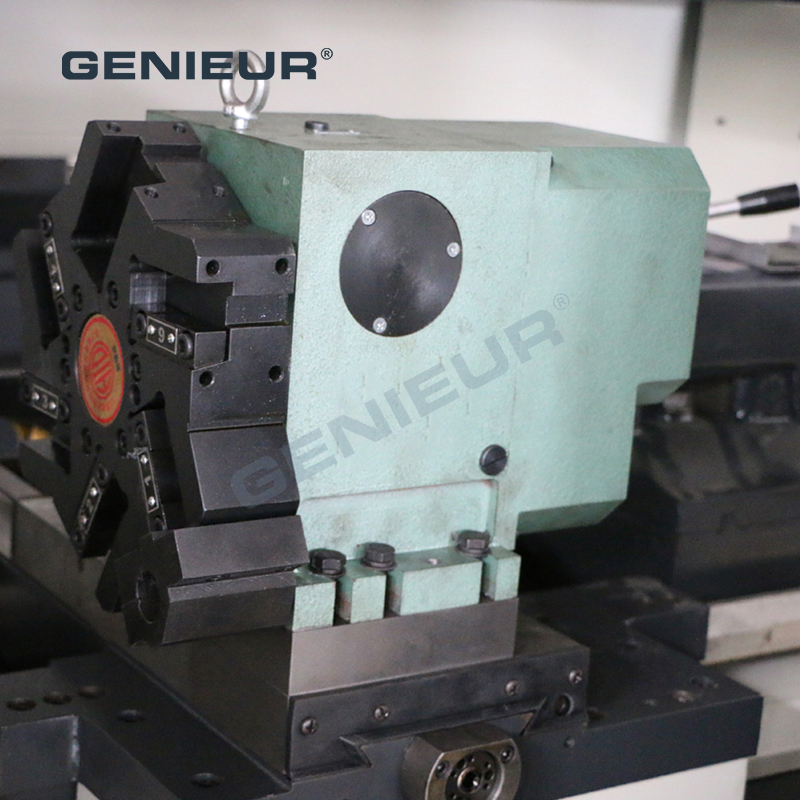

Nos. Of Tool Position:4 (6/8 Optional)
Max. Tool Size:20x20mm
Feeding Power:6/6 N.M
Tailstock Quill Diameter:∅55mm
Tailstock Quill Travel:150mm
Taper Of Tailstock Quill:MT4
Main Motor:5.5/7.5kw (Optional)
Coolant Motor:180w
Packing Size:(2290/2750)x1340x1600mm
N.W./G.W.:1500/1750kg
8inch/10inch spindle chuck 240mm swing over cross slide 400mm max. turning diameter CNC lathe for precision hardware turning, specially engineered to cater to the strict requirements of global precision hardware manufacturing industries. With its optional 8inch/10inch spindle chuck, this lathe ensures firm and stable clamping of various hardware workpieces, minimizing slippage during high-speed operation and guaranteeing consistent machining accuracy that meets international standards.
As a professional 8inch/10inch spindle chuck 240mm swing over cross slide 400mm max. turning diameter CNC lathe for precision hardware turning, the BTL400 features a 240mm swing over cross slide and 400mm maximum turning diameter, enabling flexible processing of small to medium-sized precision hardware parts, such as bolts, shafts, and fittings, without frequent machine adjustment.

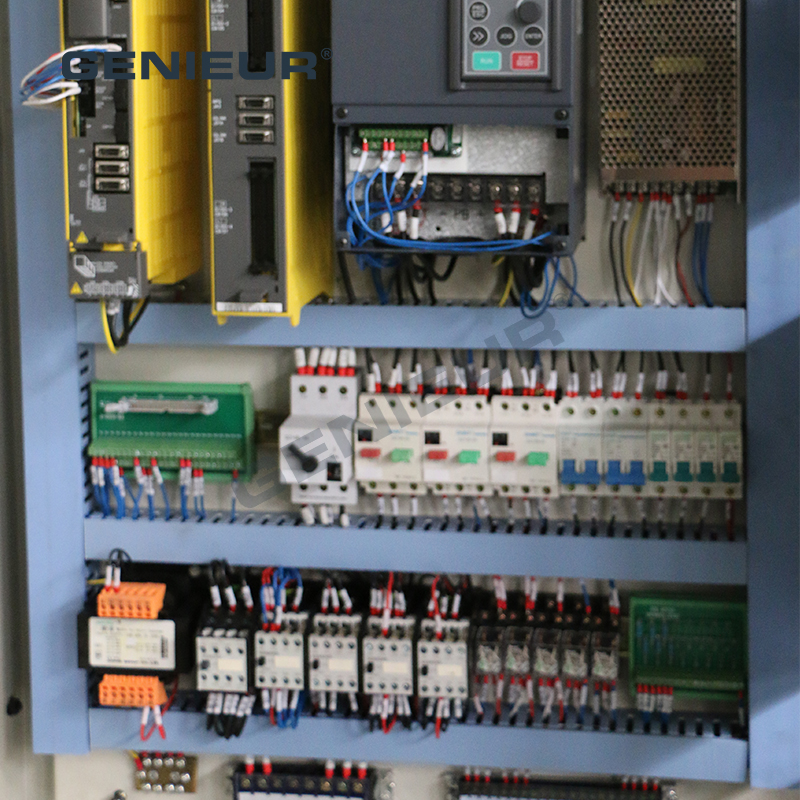

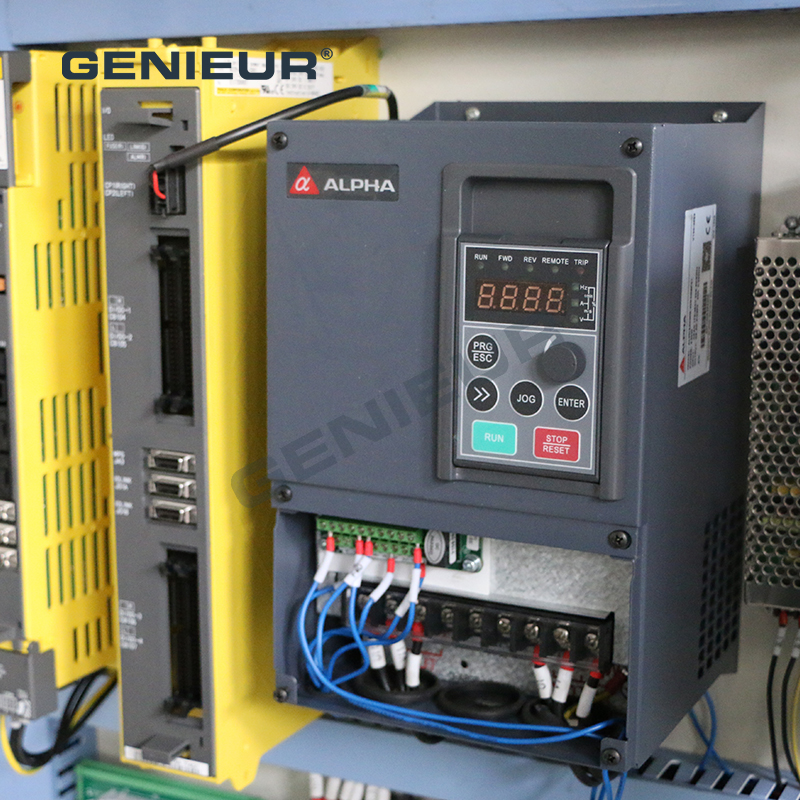

Equipped with a high-performance frequency conversion main motor (5.5KW/7.5KW optional) and advanced CNC control system (GSK, Siemens or Fanuc available), the 8inch/10inch spindle chuck 240mm swing over cross slide 400mm max. turning diameter CNC lathe for precision hardware turning delivers efficient and automated machining, reducing labor costs and improving production consistency.
