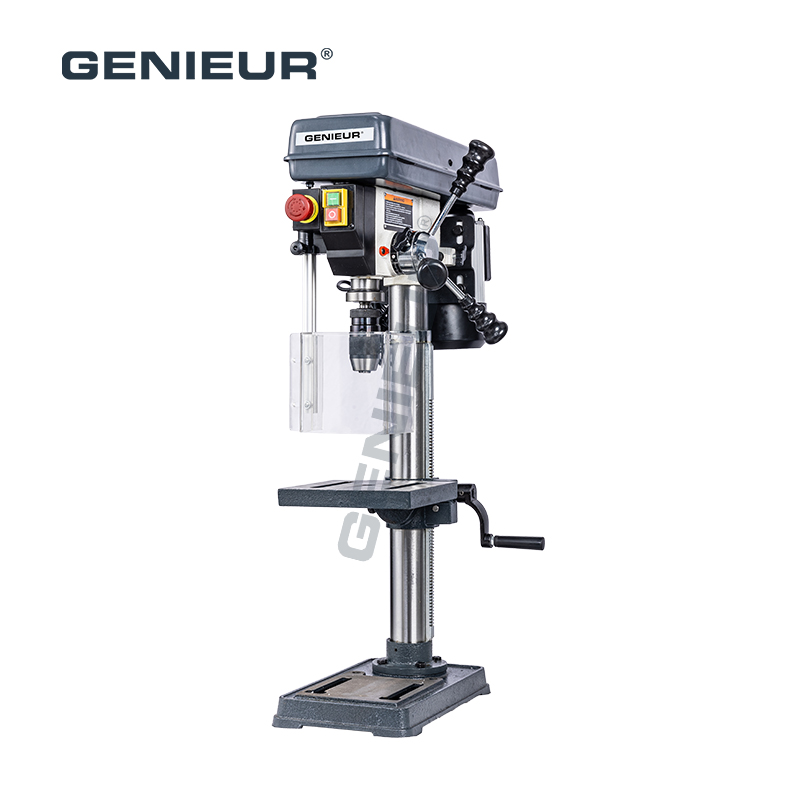

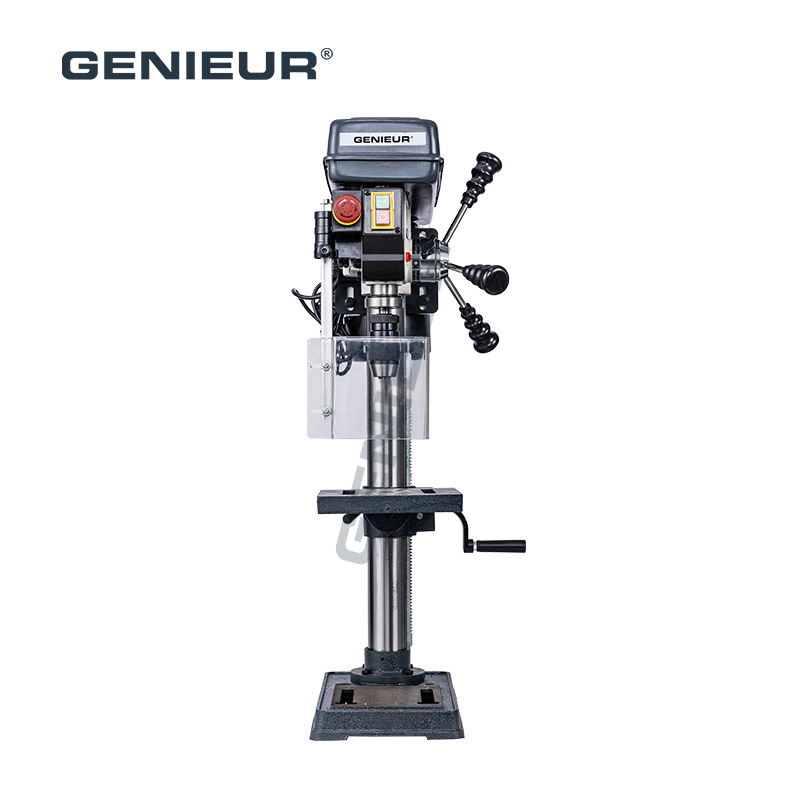

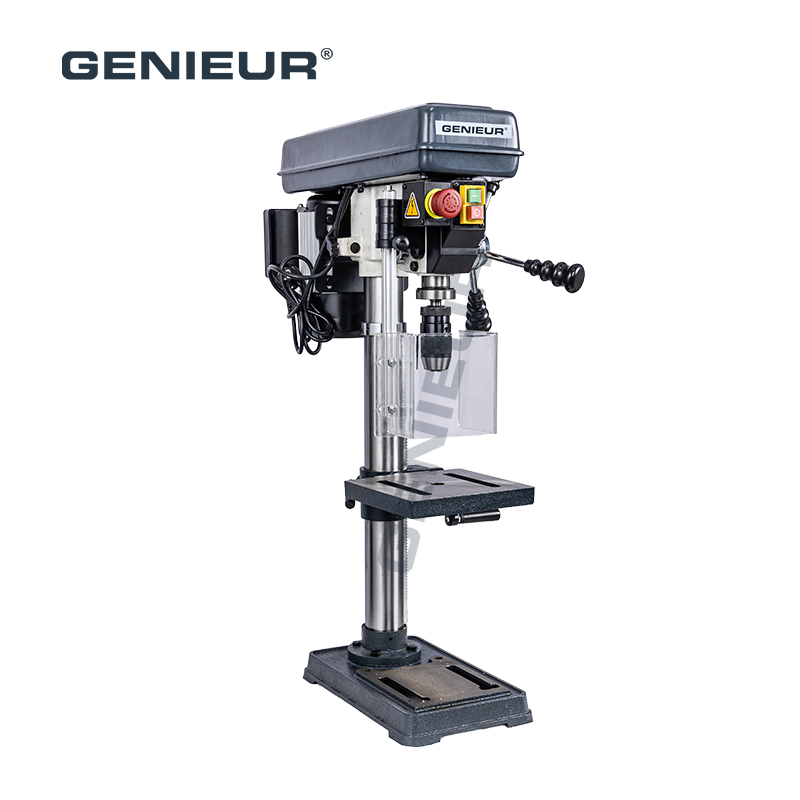

B16 Spindle Taper 195x196mm Worktable Size 1-16mm Chuck Capacity Bench Drill for Mini Parts Drilling

Model:DP13B
Max. Drilling Diameter:∅16mm (5/8”)
Motor Power:450w
Chuck Capacity:1~16mm
Spindle Travel:60mm
Class Of Speed:5
Speed50/60Hz:500~2500/620~3100rpm
Spindle Taper:B16
Max. Distance From Spindle End To Surface Of Table:390mm
Max. Distance From Spindle End To Surface Of Base:510mm
Swing:250mm
Table Size:195×196mm
Base Size:348×215mm
Column Diameter:∅59.5mm
Height:720mm
N.W./G.W.:26.0/28.0kg
Packing Size:670×420×254mm

Description

The DP13B bench drill is a compact tool specifically engineered for mini parts drilling, perfectly embodying the features of the B16 spindle taper 195x196mm worktable size 1-16mm chuck capacity bench drill for mini parts drilling. Designed to meet the demands of hobbyists, small workshops, and manufacturing, it excels at drilling tiny, delicate components such as electronic parts and small hardware with accuracy.

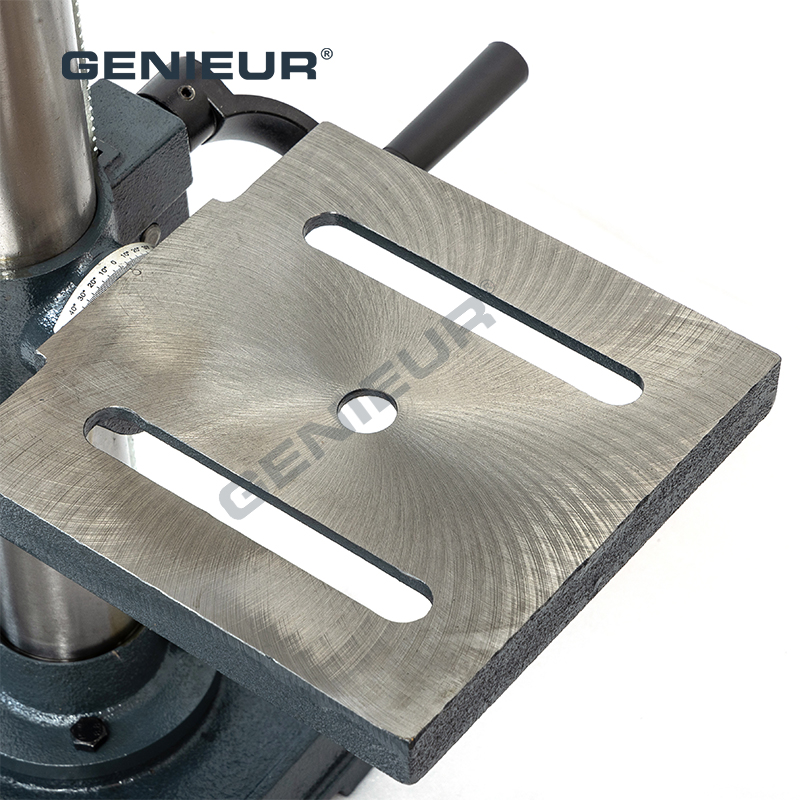

Featuring a B16 spindle taper, this bench drill ensures secure, stable drill bit installation, minimizing runout and delivering clean, burr-free holes—an essential advantage of B16 spindle taper 195x196mm worktable size 1-16mm chuck capacity bench drill for mini parts drilling. Its 195x196mm worktable provides ample, stable space for clamping small workpieces, while the adjustable table height and tilt function enhance operational flexibility.

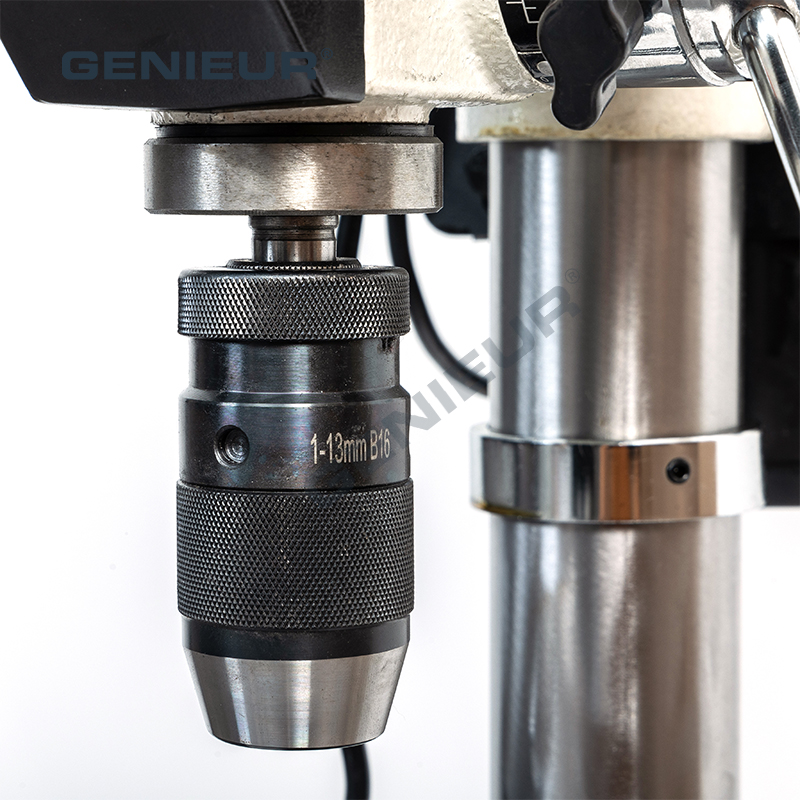

With a 1-16mm chuck capacity, it accommodates a full range of small drill bits, adapting to various mini part drilling needs. Compact and space-saving, it fits easily on workbenches without sacrificing performance. B16 spindle taper 195x196mm worktable size 1-16mm chuck capacity bench drill for mini parts drilling (DP13B) combines durability, precision, and user-friendliness, making it the top choice for customers seeking reliable drilling for mini components.
