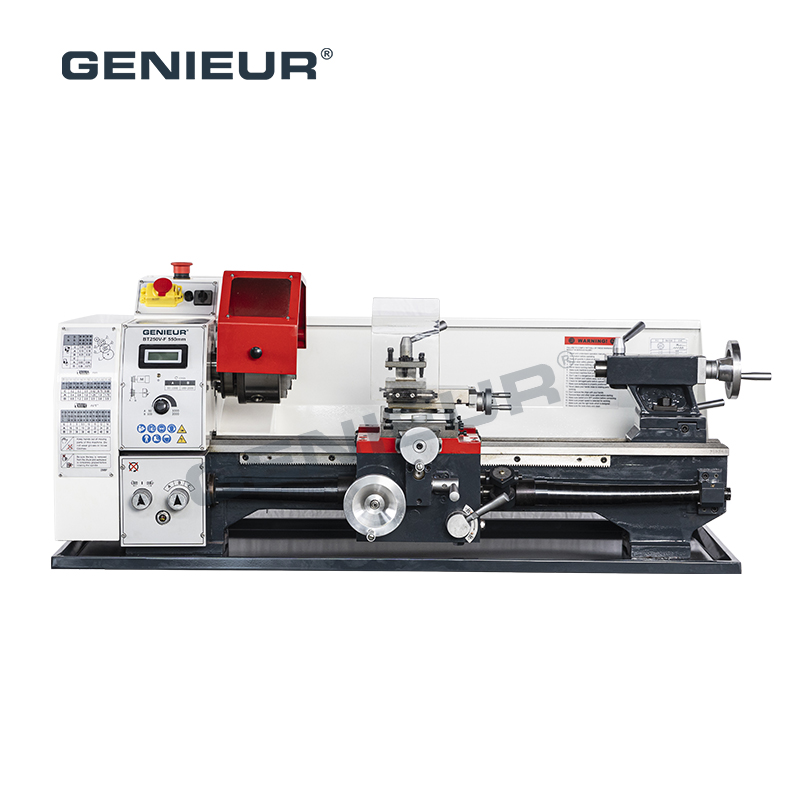

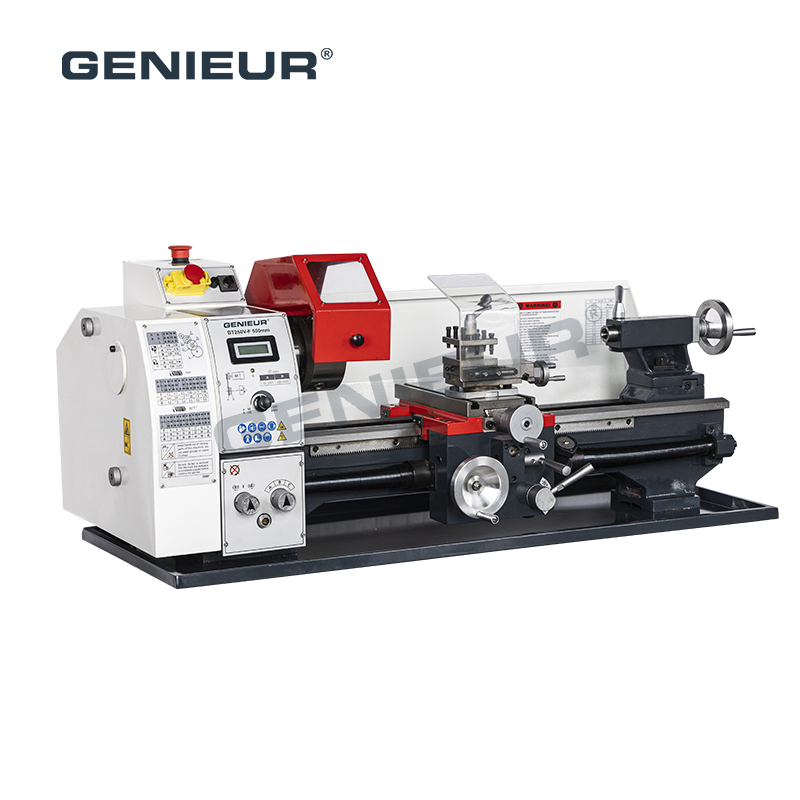

Model:BT250V-F
Turning Diameter (Max.):∅250mm
Swing Over Cross Slide:∅150mm
Distance Between Centers:550/750mm (Optional)
Width Of Bed:134mm
Spindle Bore:∅26mm
Spindle Taper:MT4
Variable Speed:50~2000rpm
Top Slide Travel:70mm

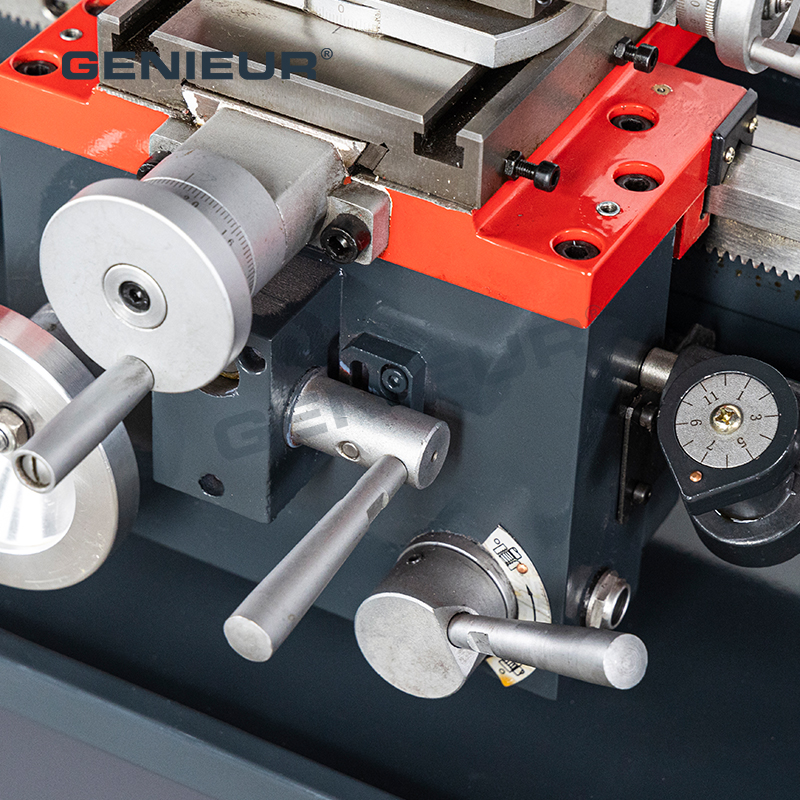

Cross Slide Travel:115mm
Max. Section Of Tools:12x12mm
Range Of Metric Threads (18kinds):0.2~3.5mm
Range Of Inch Threads (18kinds):8~56T.P.I

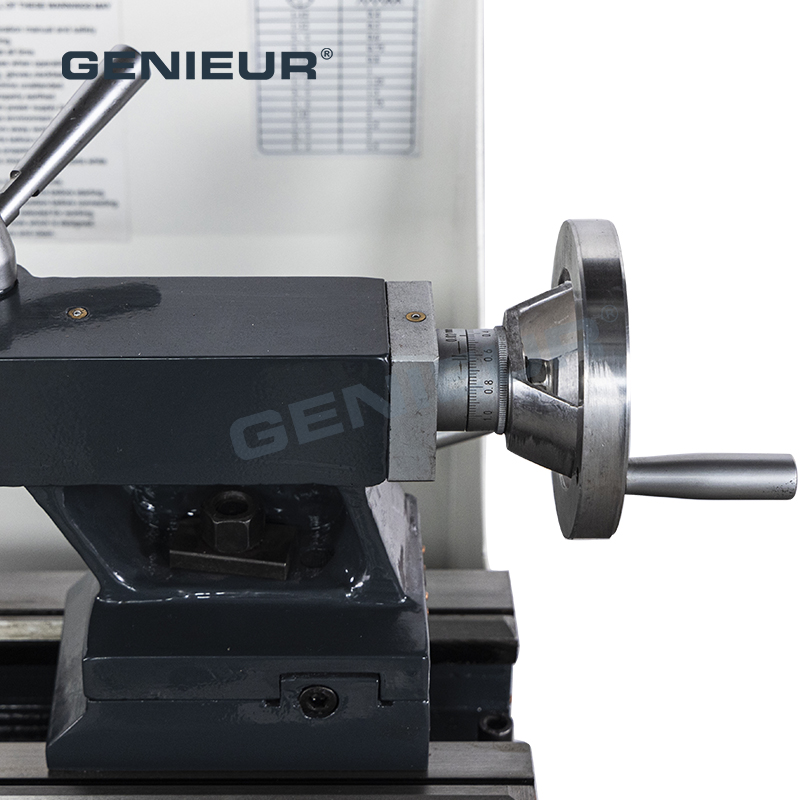

Tailstock Quill Diameter:∅30mm
Tailstock Quill Travel:70mm
Taper Of Tailstock Quill:MT2
Motor Power:750w
Voltage:110V~240V(1PH)
Packing Size:1320/1500x570x610mm
BT250V-F lathe superior performance for complex machining tasks is a high-performance machining solution designed to meet the demands of complex tasks. BT250V-F lathe superior performance for complex machining tasks offers exceptional capabilities for both small and large-scale production, providing accuracy and versatility. With its innovative design, BT250V-F lathe superior performance for complex machining tasks excels in turning, milling, and drilling operations, making it suitable for a variety of industries .
Incorporating features such as precise feed mechanisms, and flexible setup options, BT250V-F lathe superior performance for complex machining tasks is versatile enough to handle a variety of machining tasks, from turning and boring to threading and grooving. BT250V-F lathe superior performance for complex machining tasks is a smart investment that will continue to deliver optimal performance and meet evolving machining needs over time.
