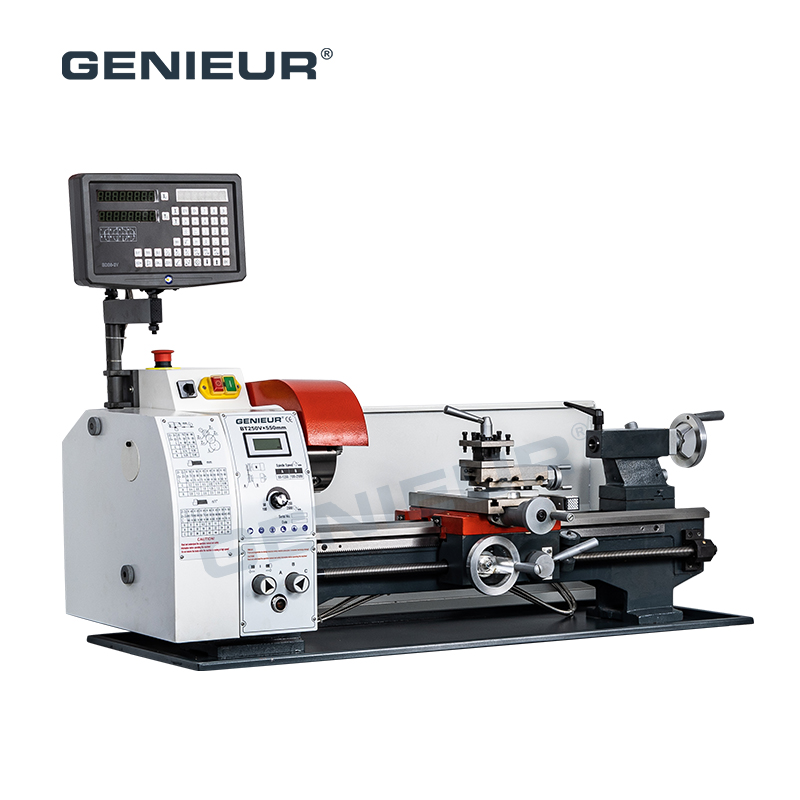

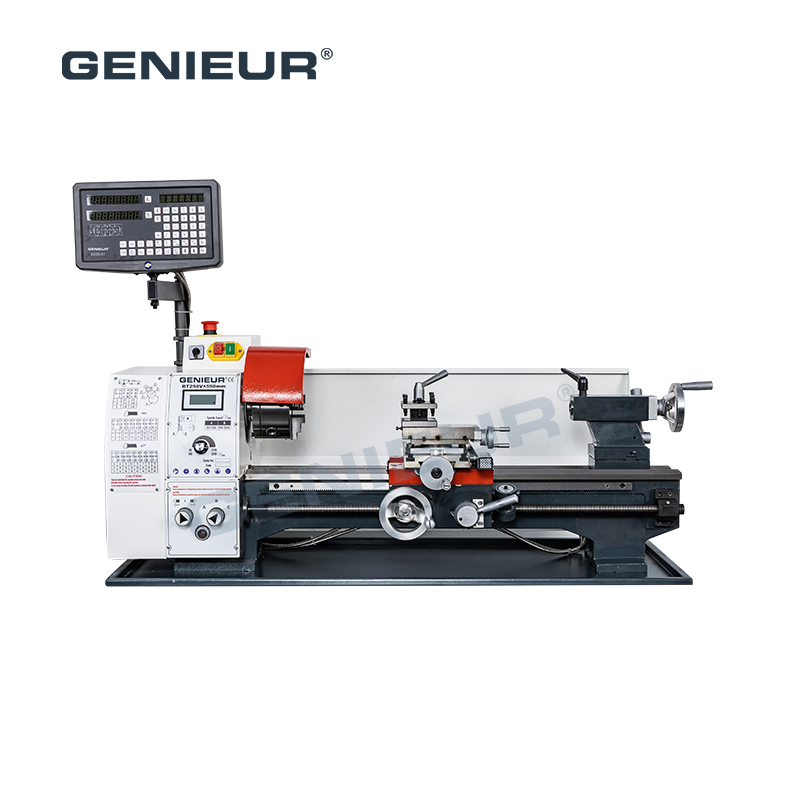

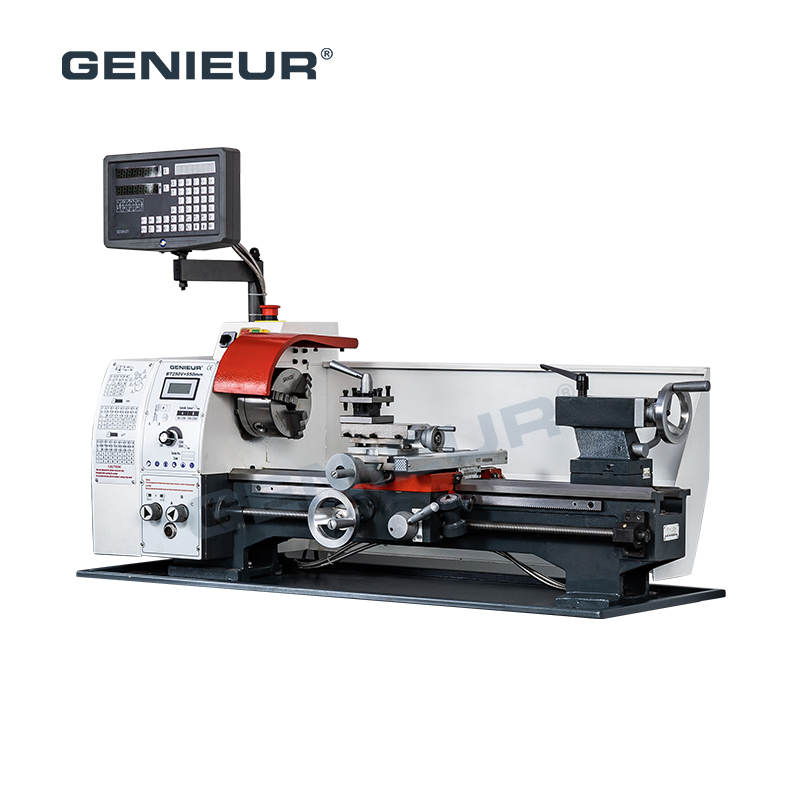

Model:BT250V
Turning Diameter (Max.):∅250mm
Swing Over Cross Slide:∅150mm
Distance Between Centers:550/750mm (Optional)
Width Of Bed:135mm
Spindle Bore:∅26mm
Spindle Taper:MT4
Variable Speed:125~2000rpm
Top Slide Travel:70mm
Cross Slide Travel:120mm
Max. Section Of Tools:12x12mm
Range Of Metric Threads:0.2~3.5mm
Range Of Inch Threads:8~56T.P.I
Tailstock Quill Diameter:∅30mm
Tailstock Quill Travel:60mm
Taper Of Tailstock Quill:MT2
Motor Power:750w
Voltage:110V~240V(1PH)
Packing Size:(1220/1400)x560x610mm
BT250V lathe versatility for machining needs is engineered for exceptional versatility, making it an ideal choice for advanced machining needs in a wide range of industries. This advanced machine tool features state-of-the-art technology that ensures accuracy, durability, and performance, allowing operators to meet the most demanding production requirements.
Whether you’re working with small parts or larger components, BT250V lathe versatility for machining needs provides excellent rigidity and stability, ensuring consistent results even during high-speed operations.
Equipped with a powerful spindle motor and a highly responsive control system, BT250V lathe versatility for machining needs offers remarkable cutting efficiency. The machine’s intuitive interface allows operators to control the machining process with ease, enhancing productivity. The compact design of the BT250V also makes it suitable for operations in limited space, without sacrificing its impressive performance capabilities.
