Model:BT290
Turning Diameter (Max.):Ø290mm
Swing Over Cross Slide:Ø178mm
Distance Between Centers:700mm
Width Of Bed:182mm
Spindle Bore:Ø38mm
Spindle Taper:MT5
Spindle Speed (6 Steps):150~2000rpm
Top Slide Travel:70mm
Cross Slide Travel:180mm
Max. Section Of Tools:16x16mm
Range Of Metric Threads:0.2~3.5mm
Range Of Inch Threads:8~48T.P.I
Tailstock Quill Diameter:Ø38mm
Tailstock Quill Travel:70mm
Taper Of Tailstock Quill:MT3
Motor Power:1500w
Voltage:110V~240V(1PH)
Packing Size:1450x720x680mm

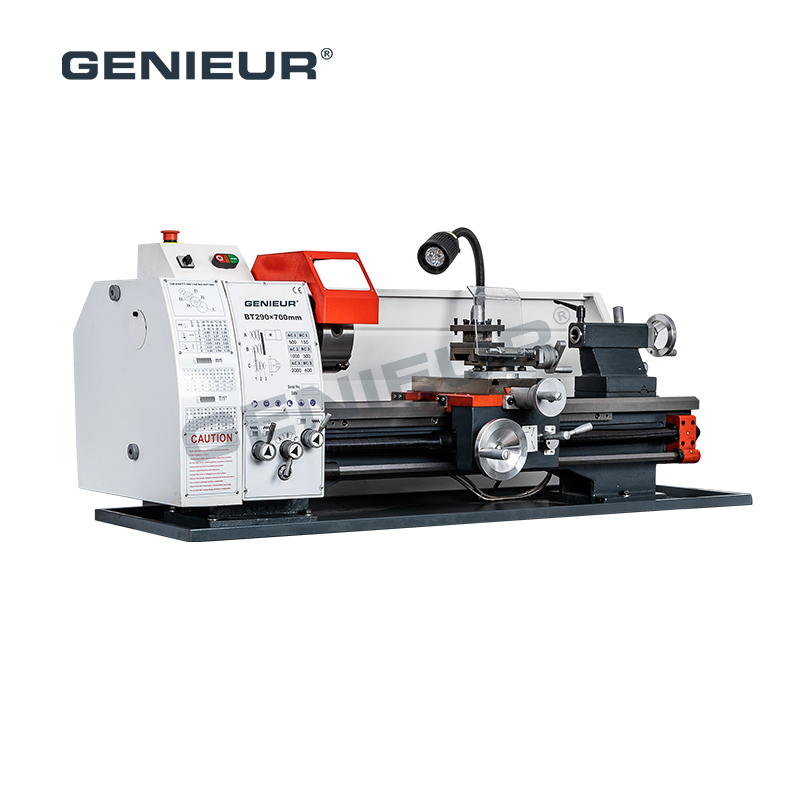

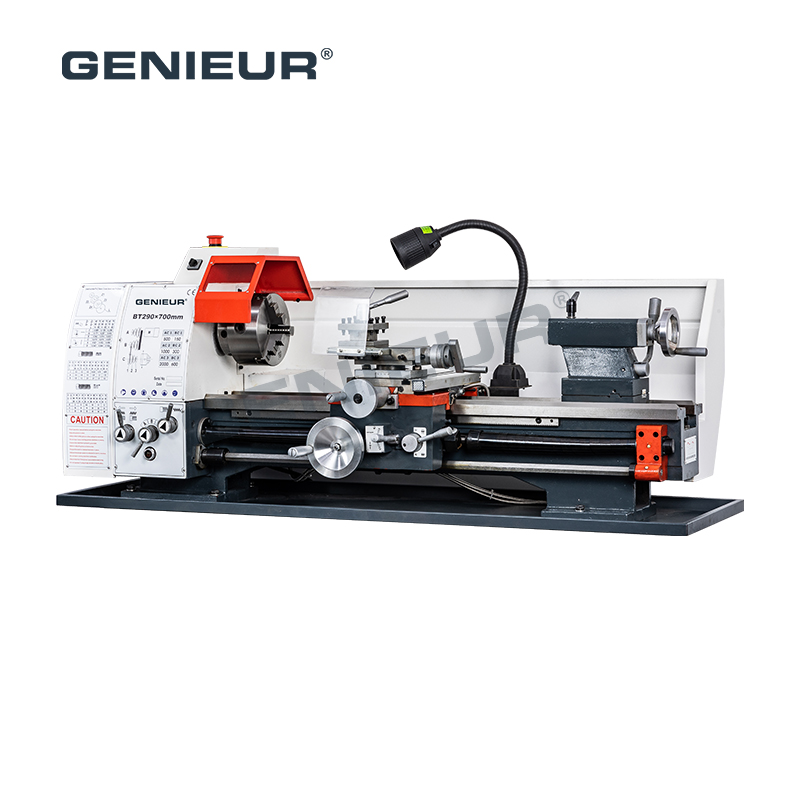

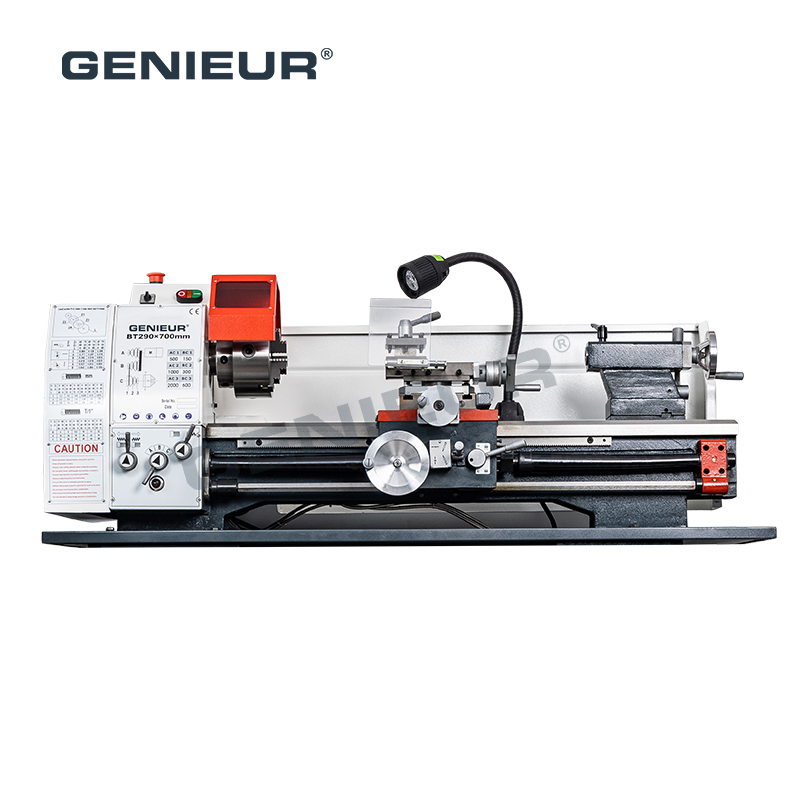

BT290 manual lathe versatile metal turning machine stands out as a versatile metal turning solution, tailored for both professional workshops and precision-focused small-scale production. Its core specifications include a maximum turning diameter of 290mm over the bed, with a maximum workpiece length of 700mm, enabling flexible processing of various shaft and sleeve parts.
What distinguishes it is the 6-speed spindle system (150-2000rpm) paired with a precision-adjustable feed mechanism, supporting 18 types of metric/imperial threads, which expands its applicability to diverse metal turning tasks.
BT290 manual lathe versatile metal turning machine adopts 1.5KW motor, ensuring long-term structural stability and reducing maintenance frequency and costs. Combining reliable machining accuracy with competitive acquisition and running costs, BT290 manual lathe versatile metal turning machine delivers exceptional value for money in daily turning tasks.
If you have any suggestions, product consultation, business cooperation, or use problems, please leave a message on this page, and we will contact you within 24 hours!
