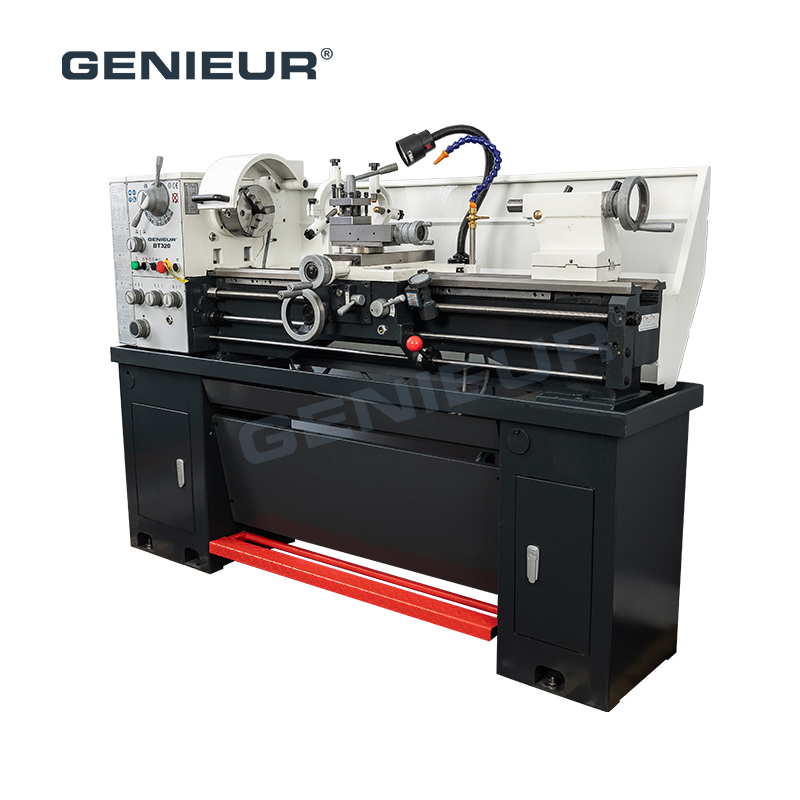

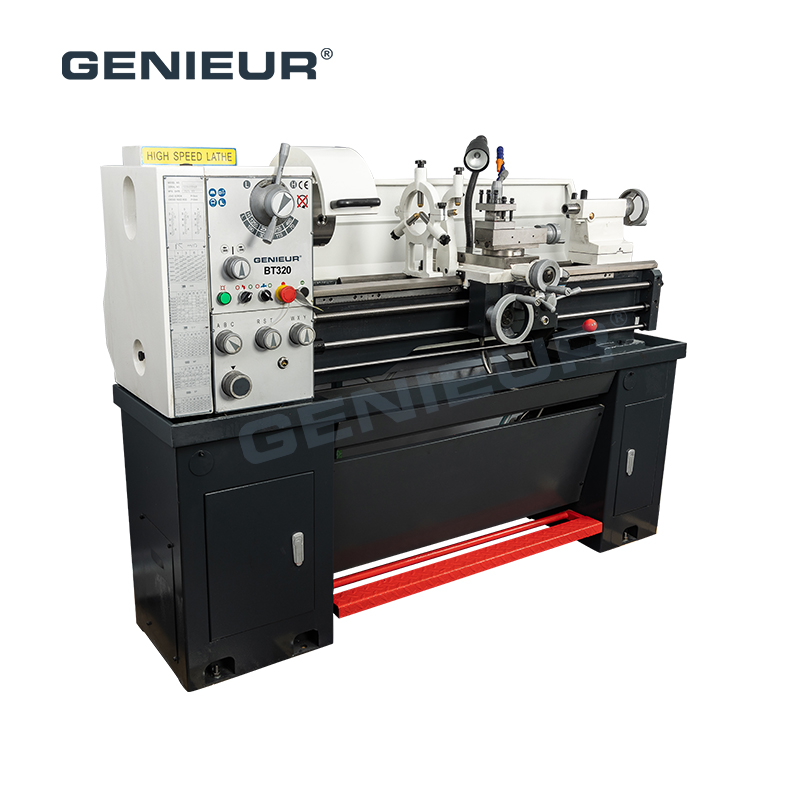

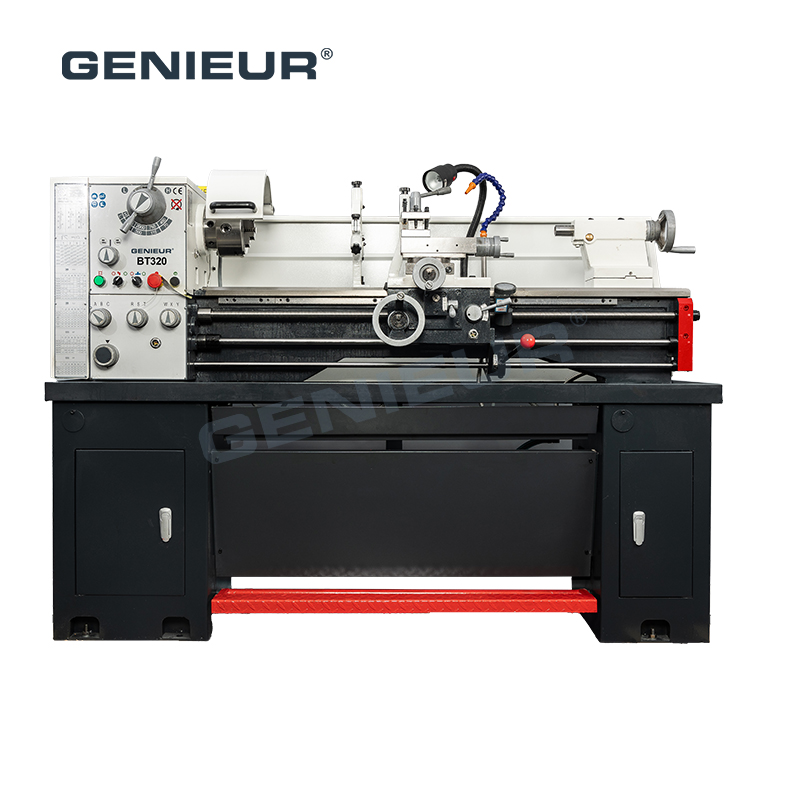

BT320 Metal Turning Lathe for Processing

Model:BT320
Turning Diameter (Max.):Ø330mm
Swing Over Cross Slide:Ø198mm
Distance Between Centers:1000mm
Center Height:166mm
Width Of Bed:187mm
Spindle Nose:D1-4
Spindle Bore:Ø38mm
Taper Of Spindle Bore:MT5
Spindle Speed (8 Steps):70~2000rpm
Top Slide Travel:95mm
Cross Slide Travel:170mm
Max. Section Of Tools:16x16mm
Range Of Metric Threads (44 Kinds):0.1~7mm
Range Of Inch Threads (42 Kinds):4~112 T.P.I
Lead Screw Diameter:Ø22mm
Lead Screw Thread:3mm or 8T.P.I
Tailstock Quill Diameter:Ø32mm
Tailstock Quill Travel:100mm
Taper Of Tailstock Quill:MT3
Motor Power:1.5kw
Voltage:380V~440V (3PH)
Packing Size:1930x760x1580mm

Description

For manufacturers seeking reliable and efficient metal machining solutions, BT320 metal turning lathe for processing emerges as a standout choice. Engineered specifically for precision metal processing, BT320 metal turning lathe for processing features a robust cast iron bed that ensures exceptional stability, minimizing vibration during high-intensity cutting operations and guaranteeing consistent machining accuracy. With a maximum turning diameter of 330mm and a 1.5KW high-torque motor, it effortlessly handles a wide range of metal materials, from aluminum and copper to carbon steel and stainless steel, meeting diverse processing needs.

Equipped with an 8-step spindle speed adjustment system (ranging from 70 to 2000rpm) and a 4-station tool post, it significantly enhances processing efficiency. Backed by a 1-year warranty and accessible spare parts, BT320 metal turning lathe for processing is your cost-effective solution for versatile, high-quality manual machining.
