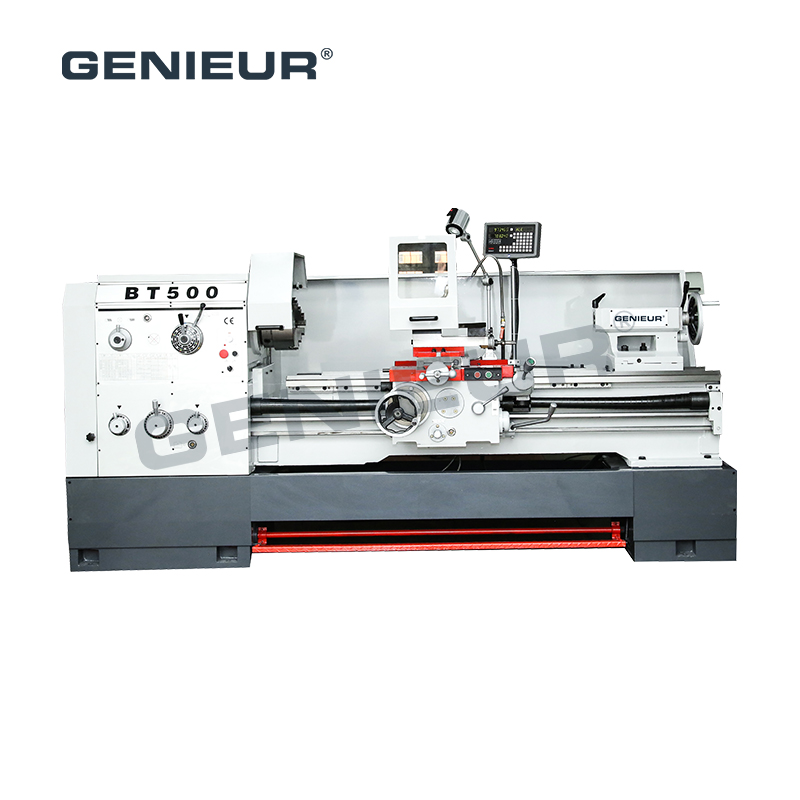

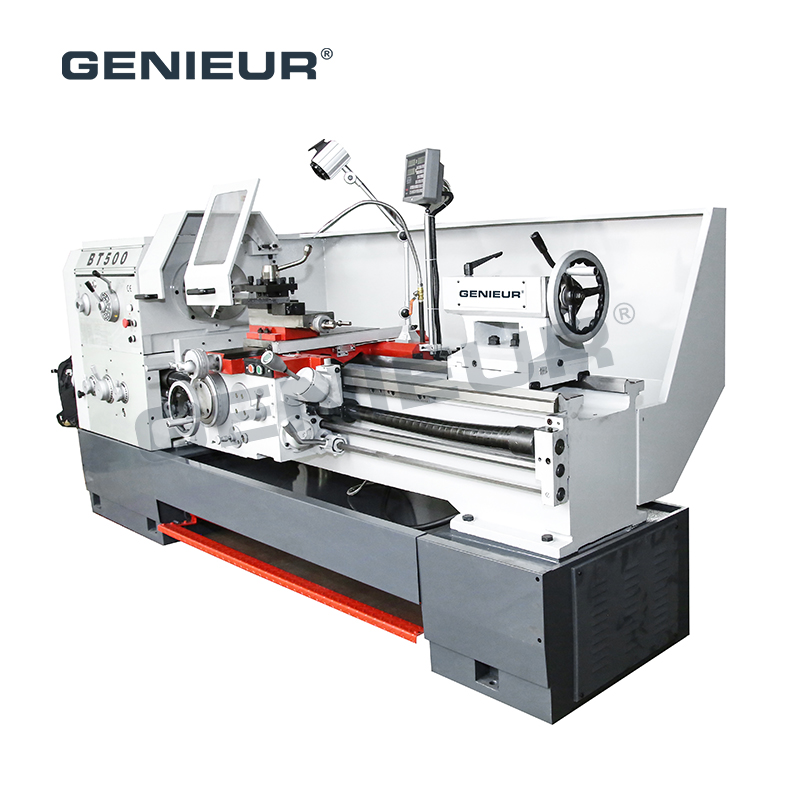

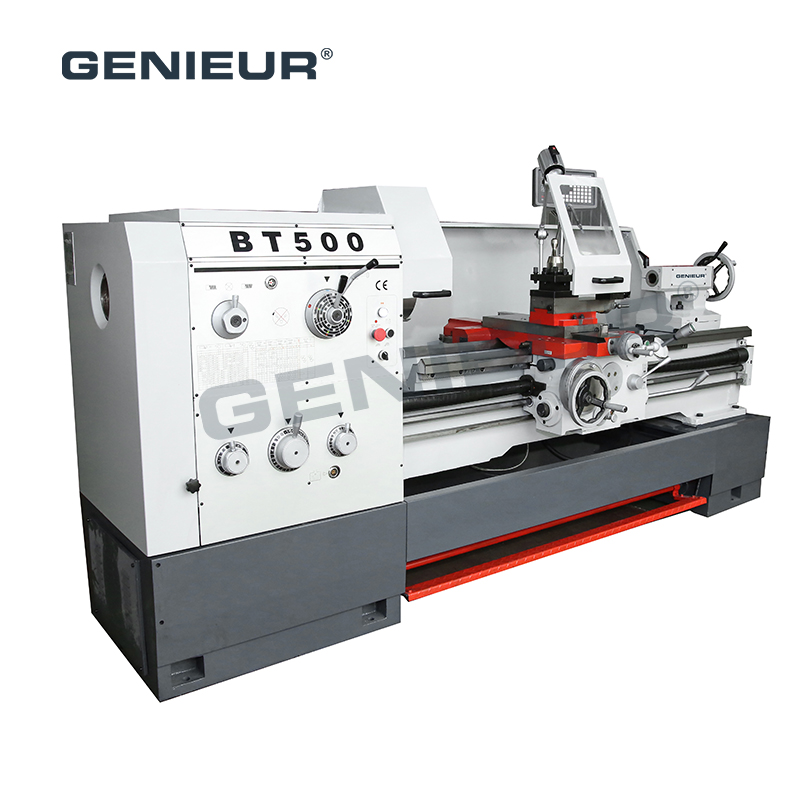

Model:BT500
Turning Diameter (Max.):∅500/600/770mm (Optional)
Swing Over Cross Slide:∅310/420/575mm
Swing In Gap Diameter:∅720/870/1050mm
Valid Length Of Gap:230mm
Distance Between Centers:1000/1500/2000/3000mm
Center Height:250/330/385mm
Width Of Bed:405mm
Spindle Nose:D1-8
Spindle Bore:∅80/105mm (Optional)
Taper Of Spindle Bore:MT7/Ø113(1:20)
Spindle Speed (24/12 Steps):9~1600/36~1600rpm
Top Slide Travel:145mm
Cross Slide Travel:340/360/430mm
Max. Section Of Tools:25x25mm
Range Of Metric Threads (22 Kinds):1~14mm
Range Of Inch Threads (26 Kinds):2~28T.P.I
Threads Diametral Pitches (24 Kinds):56~4D.P
Threads Module Pitches (18 Kinds):0.5~7M.P
Tailstock Quill Diameter:∅75mm
Tailstock Quill Travel:150mm
Taper Of Tailstock Quill:MT5
Motor Power:7.5kw
Coolant Pump Motor:100w
Voltage:380V~440V(3PH)
Packing Size:(2700/3200/3700/4700)x1150x2200mm
Engineered as the excellent solution for metal parts processing, heavy duty 500mm/660mm/770mm rapid feed lathe machine for metal parts processing stands out with its versatile swing diameter options and high-performance rapid feed system, tailored to tackle large-scale, high-intensity machining tasks across industries like automotive, aerospace, and heavy machinery manufacturing.
Heavy duty 500mm/660mm/770mm rapid feed lathe machine for metal parts processing delivers consistent power output, paired with a speed range of 9-1600RPM/36-1600RPM that enables precise machining of diverse metal materials—from carbon steel and alloy steel to stainless steel and cast iron.
From batch production of steel components to custom machining of non-metallic materials, heavy duty 500mm/660mm/770mm rapid feed lathe machine for metal parts processing delivers unmatched versatility, speed, and precision.
