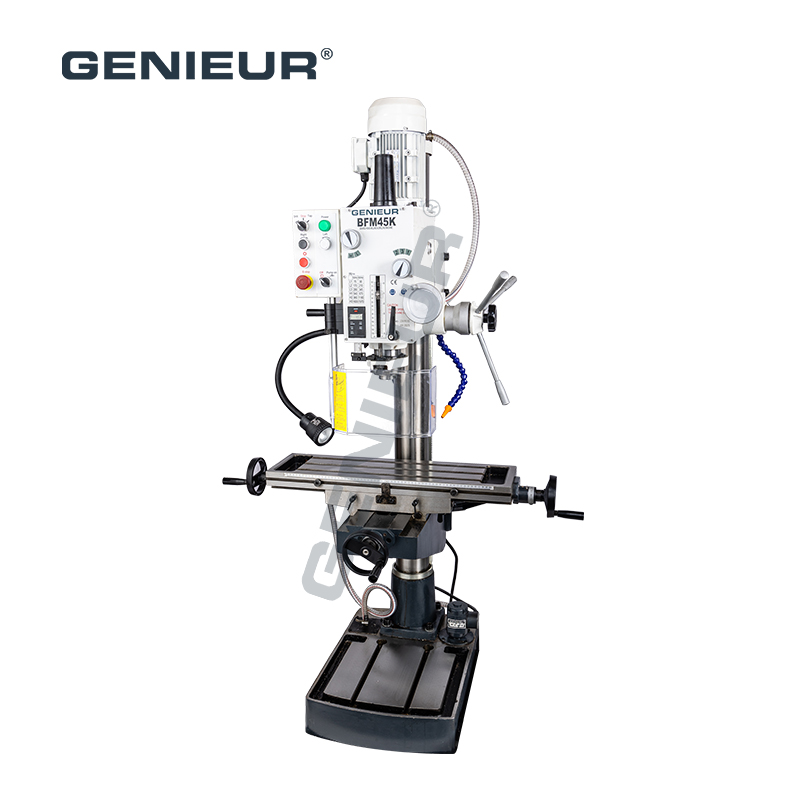

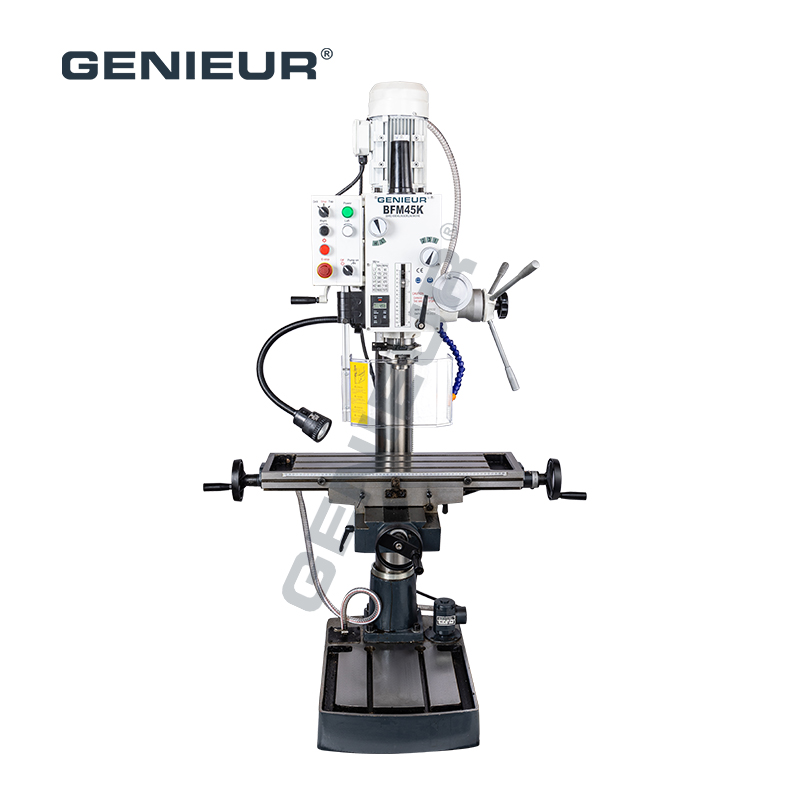

Model:BFM45K
Mill & Drill:
Max. Drilling Capacity:Iron ∅40mm Steel ∅32mm
End Milling Capacity:∅32mm
Face Milling Capacity:∅80mm
Spindle Taper:MT4/R8

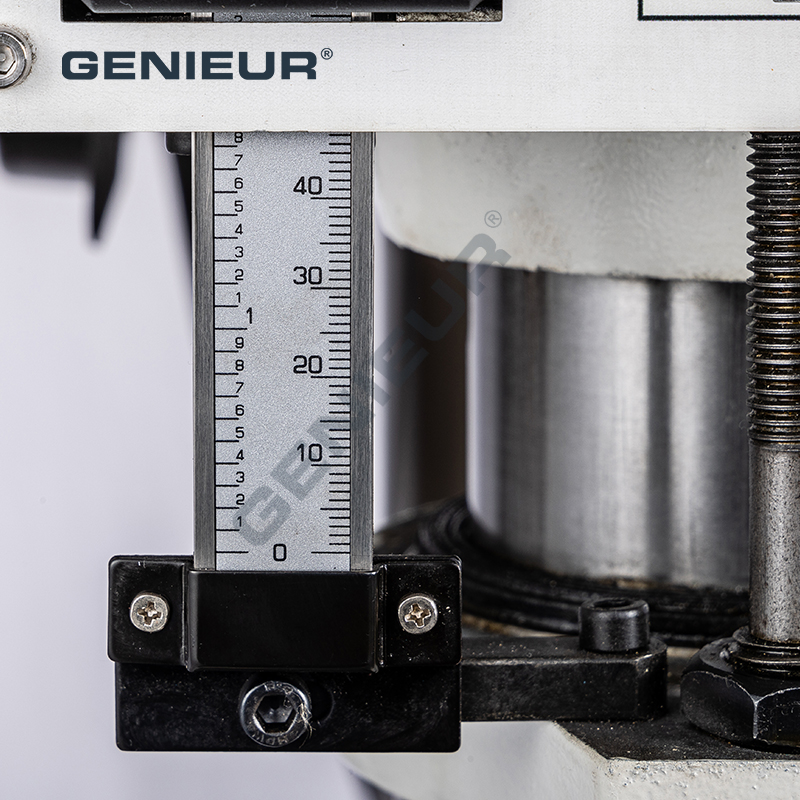

Spindle Travel:120mm
Range Of Spindle Speed:75~1600rpm/75~3200rpm (Optional)

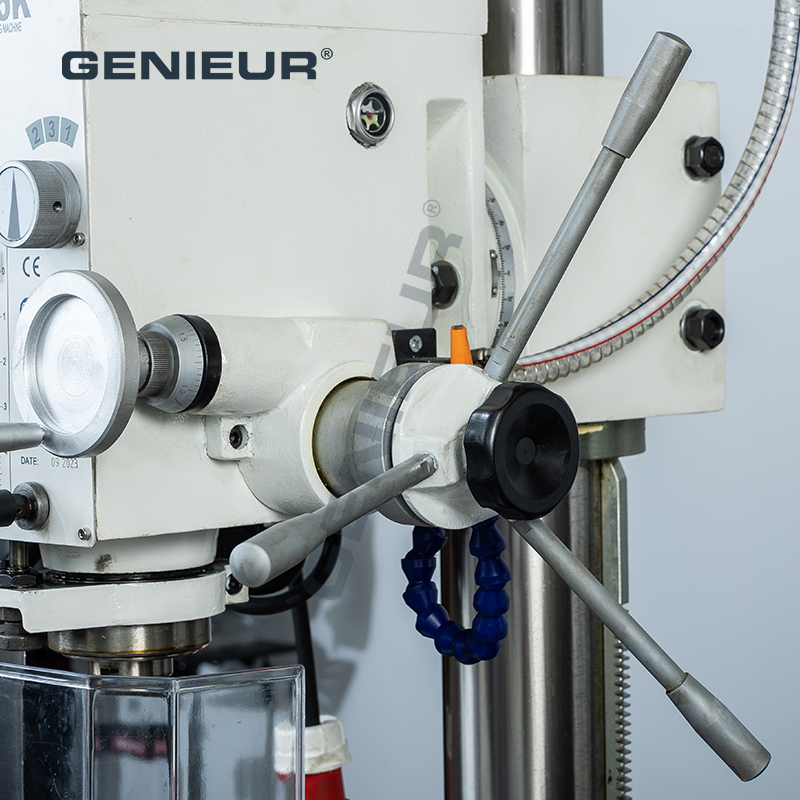

Head Tilt Left And Right:±90°
Steps Of Spindle Speed:6/12 (Optional)
Automatic Spindle Feeds:0.1/0.18/0.26mm/r (Optional)
Worktable:
Working Table Size:730x210mm
Dimension Base:650x450mm

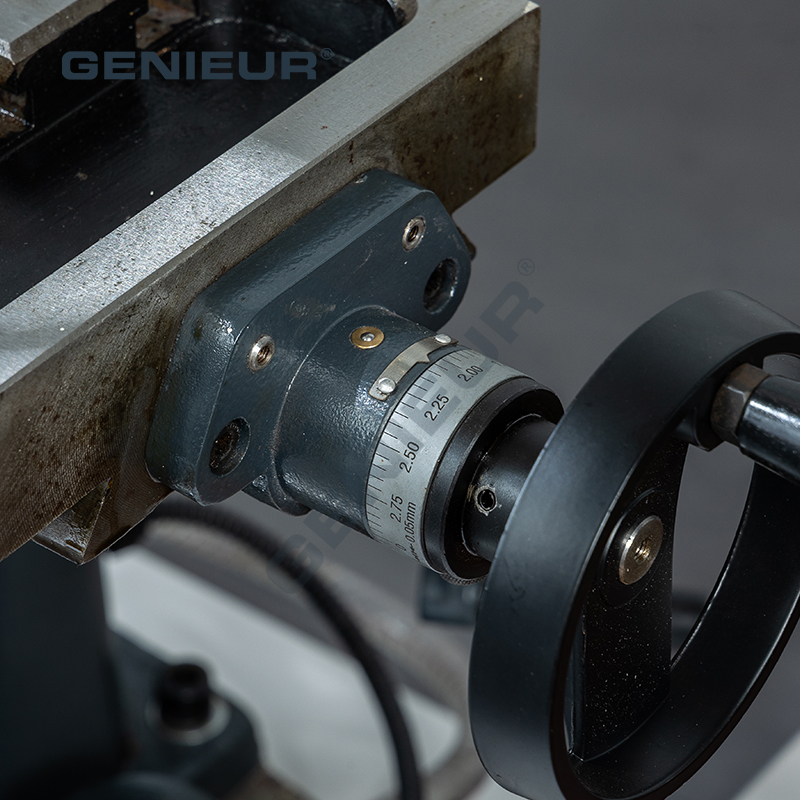

Worktable X/Y-Axis Travel:500x190mm
T-Slot:12mm
Distance Between Spindle And Column:260mm
Max Distance Spindle To Table:610mm
Motor Power:1500w
Cooling Motor:40w (Optional)
Packing Size:830x760x1850mm
N.W./G.W.:340/390kg
High power 90° head tilt iron 40mm steel 32mm max. drilling capacity drilling milling machine for workshop use is a heavy-duty machine engineered to elevate workshop productivity, blending brute power with precise control for industrial-grade metalworking.
Boasting a high-power motor and 90° adjustable head tilt (±90° rotation), this machine tackles angled drilling, milling tasks with ease, making it indispensable for busy workshops handling diverse projects. High power 90° head tilt iron 40mm steel 32mm max. drilling capacity drilling milling machine for workshop use excels in steel processing, supporting 40mm drilling in iron and 32mm drilling in steel maximum drilling capacity for versatile material handling.
Its rugged construction withstands rigorous daily operations, while the flexible head tilt design eliminates the need for cumbersome workpiece adjustments. High power 90° head tilt iron 40mm steel 32mm max. drilling capacity drilling milling machine for workshop use merges durability and adaptability, ideal for small-batch production and custom machining tasks.
