Model:BFM40
Mill & Drill:
Max. Drilling Capacity:Iron ∅40mm / Steel ∅32mm
End Milling Capacity:∅32mm
Face Milling Capacity:∅80mm
Spindle Taper:MT3/MT4/R8
Spindle Travel:120mm
Range Of Spindle Speed:75~1600rpm/75~3200rpm (Optional)
Head Tilt Left And Right:±90°
Steps Of Spindle Speed:6/12 (Optional)
Automatic Spindle Feeds:0.1/0.18/0.26mm/r
Worktable:
Working Table Size:730x210mm
Worktable X/Y-Axis Travel:500x230mm
T-Slot:12mm
Distance Between Spindle And Column:260mm
Max Distance Spindle To Table:430mm
Motor Power:1100w
Cooling Motor:40w (Optional)
Packing Size:820x760x1150mm
N.W./G.W.:270/300kg

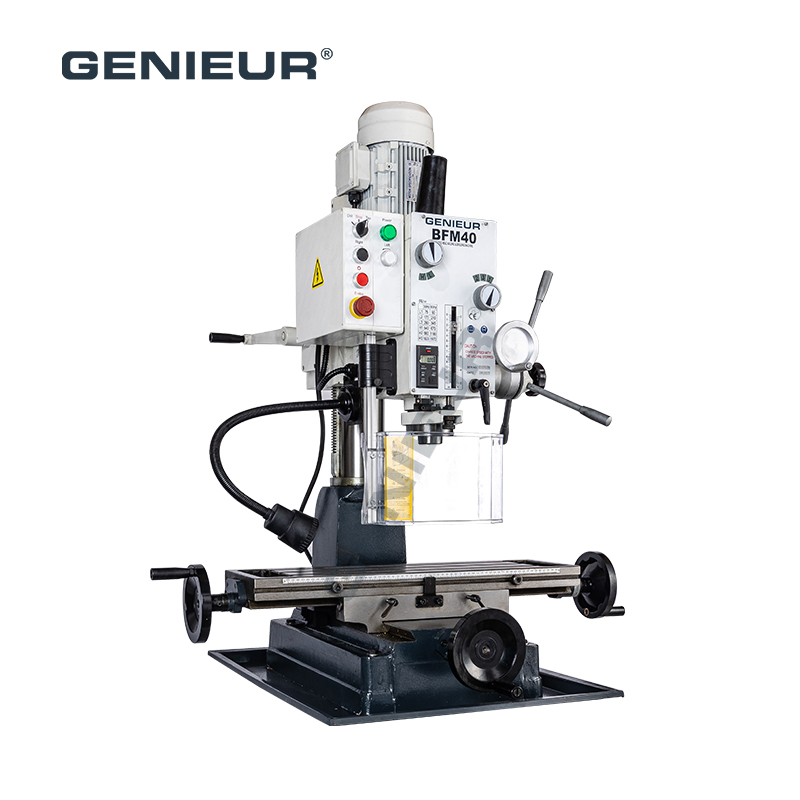

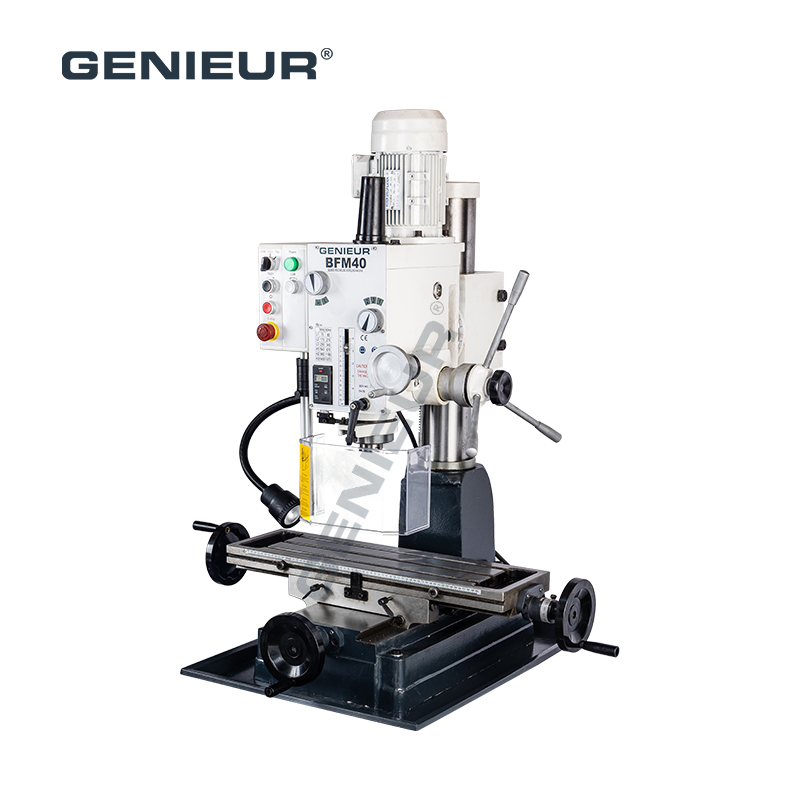

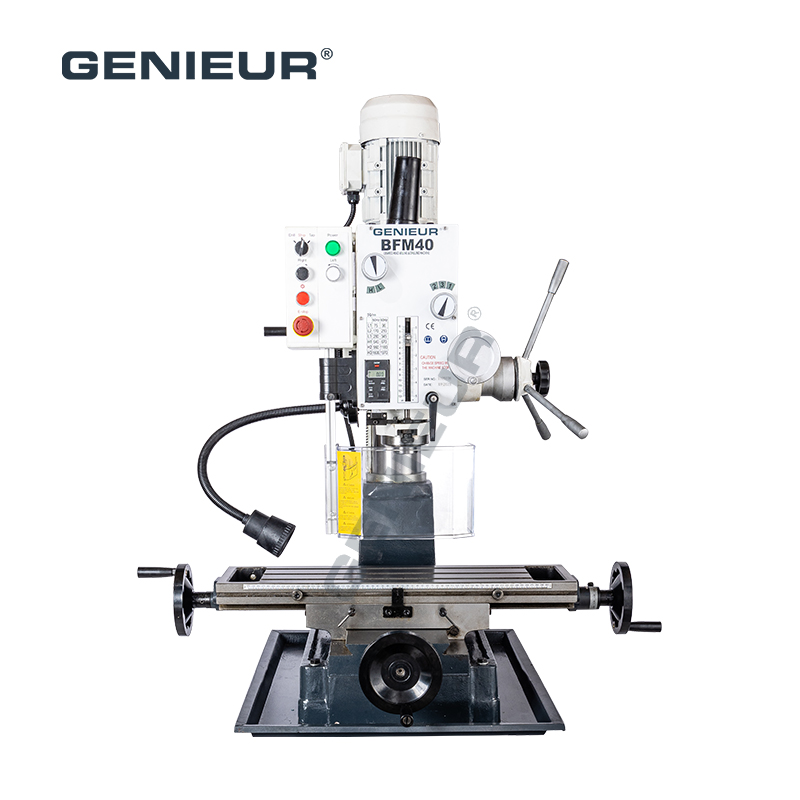

Iron 40mm steel 32mm max. drilling capacity automatic feed drilling milling machine for home workshops is a game-changer for hobbyists and home fabricators, blending industrial-grade performance with compact design tailored for home spaces. Its 40mm max drilling capacity in iron and 32mm in steel outperforms standard home workshop equipment, handling everything from thick iron brackets to precision steel components.
What makes this machine stand out is its automatic feed system, which delivers consistent pressure without manual intervention—reducing operator fatigue and boosting hole precision. Iron 40mm steel 32mm max. drilling capacity automatic feed drilling milling machine for home workshops features a 1.1KW motor, adapting seamlessly to diverse metalworking tasks, from drilling to light milling.
The BFM40 automatic feed machine also includes an integrated coolant system to extend tool life. For home workshops seeking professional results, iron 40mm steel 32mm max. drilling capacity automatic feed drilling milling machine for home workshops is the ultimate all-in-one solution to elevate your metalworking projects.
