Model:Z5040E
Max. Drilling Capacity:40mm
Max. Tapping Diameter:M28
Spindle Taper:MT4
Spindle Stroke:180mm
Spindle Center To Column Surface:360mm
Spindle Nose To Worktable:600mm
Spindle Nose To Base:1215mm
Spindle Speeds Range (12steps):42~2050rpm
Speed Power Feed Range (4steps):0.07/0.15/0.26/0.4mm/r
Diameter Of Column:160mm
Worktable Size:370x500mm
Base Size:460x450mm
Width Of T-Slot:2-14mm
Main Motor:2.2/2.8kw (double speed)
Packing Size:2200x700x1150mm
N.W./G.W.:640/750kg

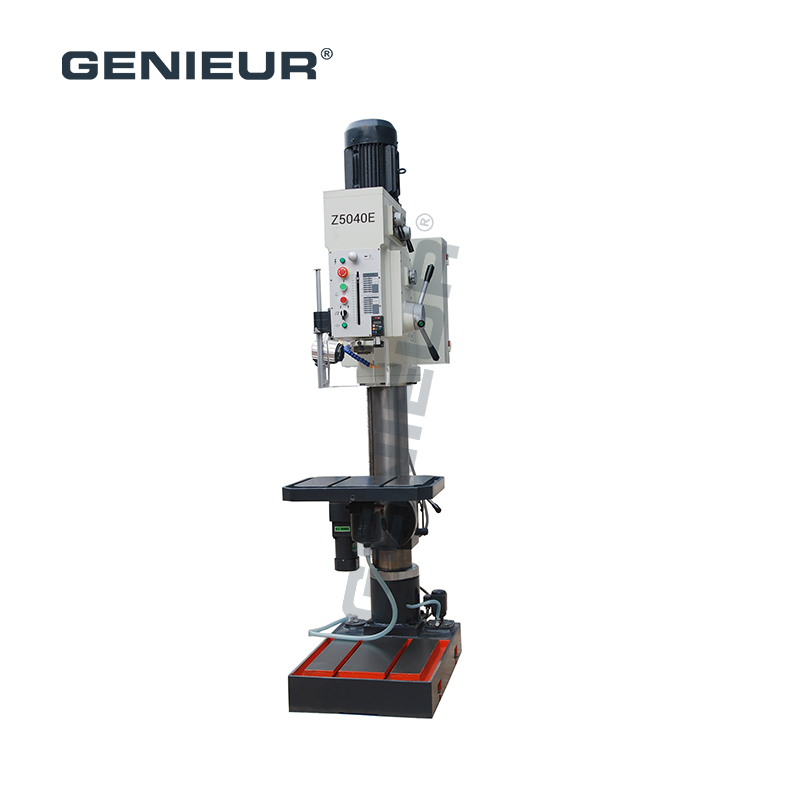

The Z5040E is a high-performance equipment perfectly matching the M28 max. tapping diameter MT4 spindle taper 42-2050RPM drilling machine for drilling & tapping, designed to elevate your industrial processing efficiency. Equipped with a robust MT4 spindle taper, it ensures stable tool clamping and precise power transmission, making it ideal for heavy-duty drilling and tapping tasks.
Boasting a 42-2050RPM adjustable speed range, this machine adapts to diverse material requirements, from steel to cast iron. What sets it apart is its compliance with the M28 max. tapping diameter MT4 spindle taper 42-2050RPM drilling machine for drilling & tapping standards, delivering reliable tapping performance up to M28 for versatile applications.
Featuring 2.2KW/2.8KW dual-speed motor, it balances power and precision. M28 max. tapping diameter MT4 spindle taper 42-2050RPM drilling machine for drilling & tapping core configuration ensures consistent accuracy, supported by a 370×500mm worktable for flexible workpiece placement. With CE certification, 1-year warranty and durable construction, the Z5040E embodies the reliability.
