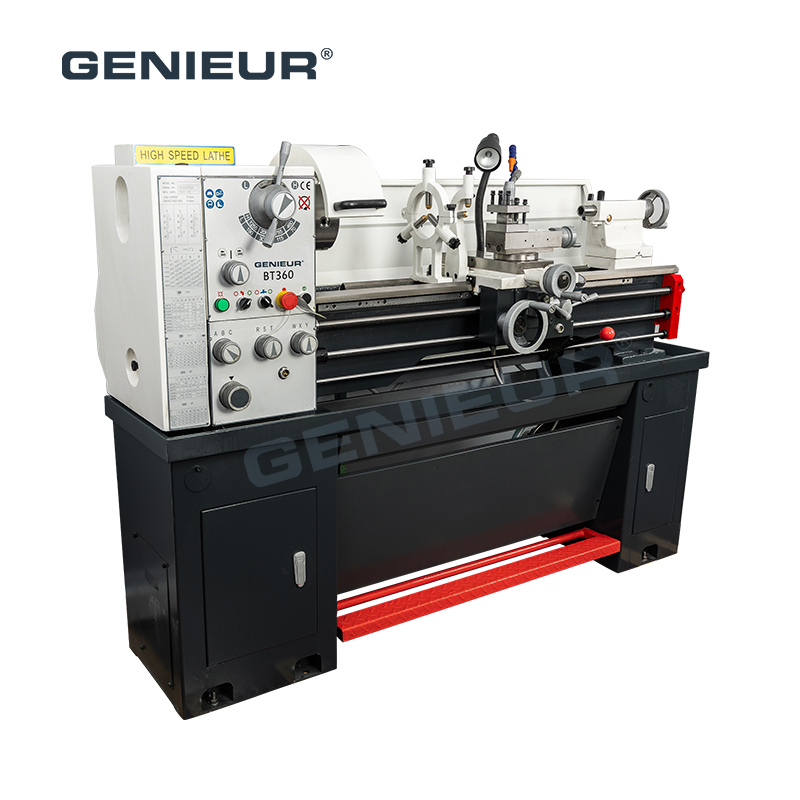

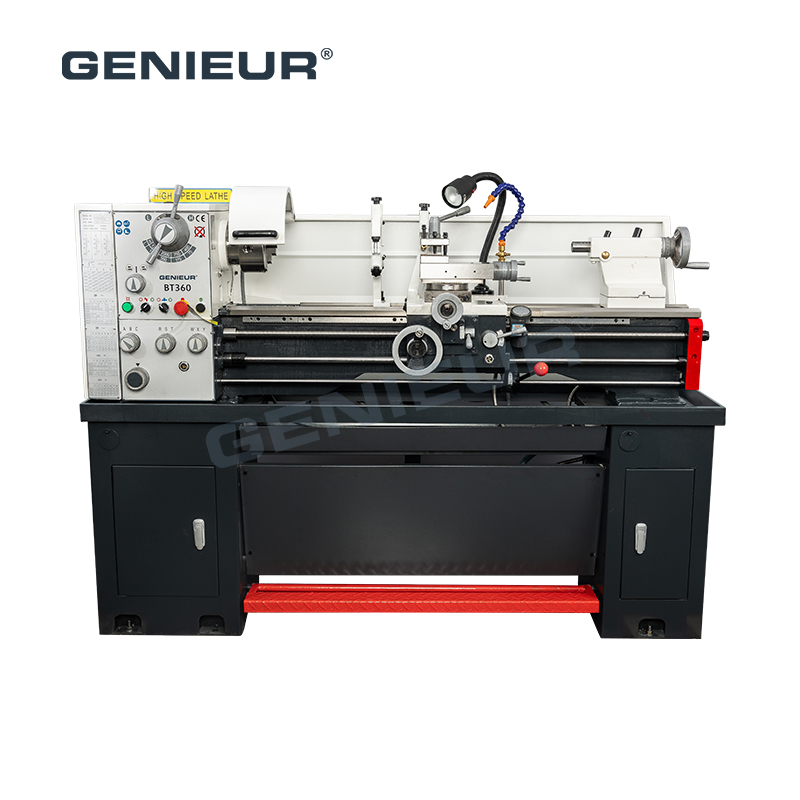

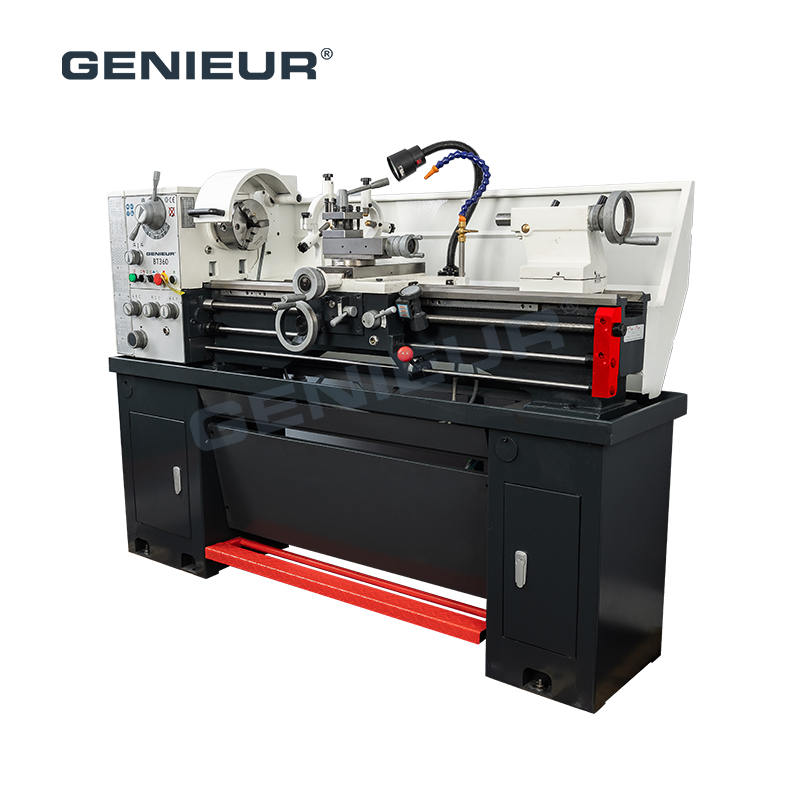

Model:BT360
Turning Diameter (Max.):Ø360mm
Swing Over Cross Slide:Ø224mm
Distance Between Centers:1000mm
Center Height:179mm
Width Of Bed:187mm
Spindle Nose:D1-5
Spindle Bore:Ø40mm(Optional)
Taper Of Spindle Bore:MT5
Spindle Speed (8 Steps):70~2000rpm
Top Slide Travel:95mm
Cross Slide Travel:170mm
Max. Section Of Tools:16x16mm
Range Of Metric Threads (44 Kinds):0.1~7mm
Range Of Inch Threads (42 Kinds):4~112 T.P.I
Lead Screw Diameter:Ø22mm
Lead Screw Thread:3mm or 8T.P.I

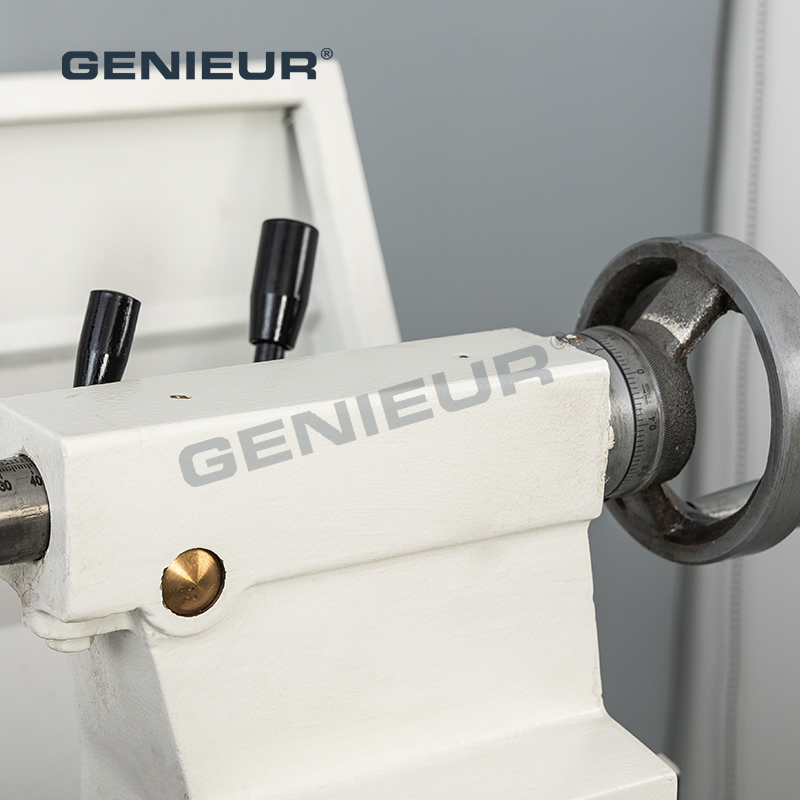

Tailstock Quill Diameter:Ø32mm
Tailstock Quill Travel:100mm
Taper Of Tailstock Quill:MT3
Motor Power:1.5kw
Voltage:380V~440V (3PH)
Packing Size:1930x760x1580mm
Threading cutting no change gear manual lathe for long shaft parts processing emerges as a good helper in precision machining, seamlessly blending robust mechanical design with easy operational features to meet the dynamic demands of modern manufacturing. Boasting a maximum swing diameter of 360mm and spindle speeds ranging from 70 to 2000 RPM, threading cutting no change gear manual lathe for long shaft parts processing delivers accuracy across diverse materials, from structural steel and aluminum to engineering plastics and composites.
Designed for versatility, threading cutting no change gear manual lathe for long shaft parts processing excels in both small-batch custom fabrication and medium-volume production, catering to industries spanning automotive components, aerospace parts, and architectural hardware. Backed by reliable after-sales support and compliance with international quality standards, the BT360 lathe is not just a machining tool but a strategic asset that empowers manufacturers to elevate efficiency, precision, and adaptability in an increasingly competitive landscape.
